Photovoltaic

Photovoltaic IconEfficiency is one of the major challenges that solar energy installations must address – not only from a technical, but also from an economic standpoint.

Cost-optimized driver solutions are realized using Power Integrations' highly-integrated SCALE and SCALE-2 gate drivers, which enable a significant reduction in both component count and PCB size over typical solutions based on discrete driver stages. Integration also results in increased reliability as fewer components means less potential causes for malfunction. Therefore, the overall system MTBF (Mean Time Between Failure) is improved using SCALE and SCALE-2 gate drivers.

One of the technical challenges related to solar applications concerns over-voltage protection.

During normal operation – when the load is connected at standard temperatures - the DC-link voltage of a solar inverter is relatively low compared to the maximum blocking capability of the power switches. Therefore, there is enough voltage ‘headroom’ to handle any over-voltages that may occur when the power switches are turned off. Reliable protection of these switches using active clamping methods is, therefore, easy to achieve.

However, the open circuit voltage of a solar inverter (more precisely, of the solar panels), in particular at low temperatures, can lead to an increased DC-link voltage close to the maximum blocking capability of the power switches. During this period any standard active clamping circuit could cause an unintended turn-on of the power switches. In the best case, this would result in additional losses and increased EMI - however in a worst-case-scenario the result could be the complete destruction of the solar converter.

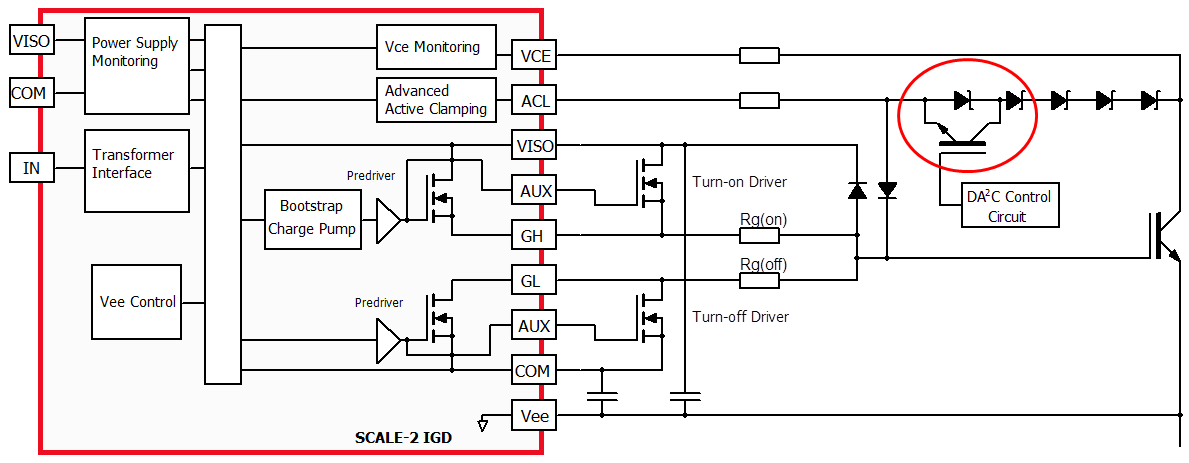

To address this situation, Power Integrations has developed a sophisticated active clamping technique, named ‘Dynamic Advanced Active Clamping (DA²C)’, which activates and deactivates the clamping function automatically, allowing solar inverter to operate safely under all application conditions (see figure 2).



Fig. 2 Dynamic Advanced Active Clamping (DA²C)

Related Products

Related Products
Product
Data Sheet
Topology
Description
Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2
Description

Dual-channel plug-and-play gate drivers for operation of single LV100 (Mitsubishi), XHP™ 2 (Infineon), HPnC (Fuji) and equivalent semiconductor modules up to 2300 V blocking voltage, featuring an electrical interface, NTC read-out and a built-in DC-DC power supply

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2
Description

Gate Driver for Driving 62mm SiC-MOSFET and Si-IGBT modules up to 1700 V via Electrical Interface

Topology 2-level Voltage Source
Description

Dual Plug-and-Play Gate Drivers for Driving Half-Bridge Power Modules with Negative Temperature Coefficient (NTC) Temperature Sensing via Electrical Interface

Topology 2-level Voltage Source
Description

Dual plug-and-play gate drivers for EconoDUAL™ and equivalent 17 mm modules, particularly applicable to offshore wind turbines in the 3 to 5 MW range

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1
Description

Plug-and-play gate drivers for 100x140 mm IGBT modules up to 3.3 kV, particularly applicable to use in electric railway trains and trams.

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Ready-to-use gate driver solution optimized for power modules from 1200 V to 3300 V blocking voltage consists of a central Isolated Master Control (IMC) 2SI0400x2xxC and up to four Module Adapted Gate Drivers (MAGs) 2SM0120D2xxC together with a cable set.

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1
Description

Dual-Channel SCALE-2 Plug-and-Play Driver for 1200 V, 1700 V and 2300 V PrimePACK™ 3+ IGBT Modules

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Smallest IGBT gate-driver for 90 kW-500 kW inverters, SCALE-2+ Technology, galvanic solution for 1200 V IGBT drivers, advanced active clamping or SSD

Topology 2-level Voltage Source
Description

Dual-channel SCALE-2+ driver core, highest integration level for inverter designs from 37 to 110 kVA, integrated short-circuit soft shutdown function

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Dual-Channel SCALE-2 Plug-and-Play Driver for PrimePACK™ IGBT Modules, Electrical or Fiber-Optic Interface, Embedded Paralleling Capability

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Dual-Channel SCALE-2 Plug-and-Play Driver for 17mm IGBT Modules, Full Function Across the Range, Embedded Paralleling Capability

Topology 2-level Voltage Source
Description

Dual-channel SCALE-2 driver core, highest integration level, second source for Infineon™ 2ED300C17-S, 30 A gate current and 2 x 4 W drive power

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Dual-Channel SCALE-2 Driver Core for 3.3 kV IGBTs, highest intergration level, compact, high-voltage, high-power, 35 A gate current and 2 x 5 W output power

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Dual-channel SCALE-2 driver core with Planar transformers, highest integration level, highest power density for high-power and high-frequency, 50 A gate current and 2 x 6 W output power

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Dual-channel SCALE-2+ driver core used by new 2SC0435T2F1-17, 2SC0435T2G1-17, 2SC0435T2H0-17, highest integration level, ultra-compact, high-quality 35 A gate current, and 2 x 4 W output power

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Dual-channel SCALE-2+ driver core, highest integration level ultra-compact, high-quality 8A gate current and 2 x 1 W output power

Topology 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2, Multi-Level NP-Clamped
Description

Single-channel SCALE-2 driver core with Planar transformers, 60 A gate current for driving large IGBT modules in parallel, 20 W output power for high-frequency applications up to 500 kHz
