SCALE-iFlex XLT

Dual-channel plug-and-play gate drivers for operation of single LV100 (Mitsubishi), XHP™ 2 (Infineon), HPnC (Fuji) and equivalent semiconductor modules up to 2300 V blocking voltage, featuring an electrical interface, NTC read-out and a built-in DC-DC power supply

Applications
Filters Filter Products
Hide Filters
Filter Products
Showing 1 - 2 of 2 Products
Product Parts
Product
Data Sheet
IGBT Voltage Class
Voltage - DC Link Switching
Supported Module(s)
IGBT Manufacturer
Module Housing
Driver Monitoring
Power - Output/Channel (Max)
Number of Channels
Interface Type
Isolation Technology
Isolation Type
Gate Turn-on Voltage
Gate Turn-off Voltage
Supply Voltage (Typ)
Logic Input Voltage
Conformal Coated?
Connection Type to IGBT
Package
Supported Topologies
Protection Features
Supported Module Type
Technology
Max Switching Frequency
Driving Mode
Main/Peripheral
Temperature - Operating (Min)
Temperature - Operating (Max)
Temperature - Storage (Min)
Temperature - Storage (Max)
IGBT Voltage Class 1200 V, 1700 V, 2300 V
Voltage - DC Link Switching 1200 V
Supported Module(s) CM1200DW-34T
IGBT Manufacturer Mitsubishi
Module Housing LV 100
Driver Monitoring NTC
Power - Output/Channel (Max) 1.0 W
Number of Channels 2
Interface Type Electrical
Isolation Technology Galvanic
Isolation Type Reinforced
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage -10.0 V
Supply Voltage (Typ) 15 V
Logic Input Voltage 15
Conformal Coated? Yes
Connection Type to IGBT Direct
Package Board
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2
Protection Features Short Circuit, Soft Shutdown, UVLO(Sec-side), UVLO(Pri-side)
Supported Module Type IGBT
Technology SCALE-2
Max Switching Frequency 25.0 kHz
Driving Mode Direct-Independent
Main/Peripheral N/A
Temperature - Operating (Min) -40 ℃
Temperature - Operating (Max) 85 ℃
Temperature - Storage (Min) -40 ℃
Temperature - Storage (Max) 50 ℃
IGBT Voltage Class 1200 V, 1700 V, 2300 V
Voltage - DC Link Switching 1200 V
Supported Module(s) FF1800XTR17T2P5
IGBT Manufacturer Infineon
Module Housing XHP™2
Driver Monitoring NTC
Power - Output/Channel (Max) 1.0 W
Number of Channels 2
Interface Type Electrical
Isolation Technology Galvanic
Isolation Type Reinforced
Gate Turn-on Voltage +15.0 V
Gate Turn-off Voltage -10.0 V
Supply Voltage (Typ) 15 V
Logic Input Voltage 15
Conformal Coated? Yes
Connection Type to IGBT Direct
Package Board
Supported Topologies 2-level Voltage Source, 3-level NP-Clamped - Type 1, 3-level NP-Clamped - Type 2
Protection Features Short Circuit, Soft Shutdown, UVLO(Sec-side), UVLO(Pri-side)
Supported Module Type IGBT
Technology SCALE-2
Max Switching Frequency 25.0 kHz
Driving Mode Direct-Independent
Main/Peripheral N/A
Temperature - Operating (Min) -40 ℃
Temperature - Operating (Max) 85 ℃
Temperature - Storage (Min) -40 ℃
Temperature - Storage (Max) 50 ℃

Product Details

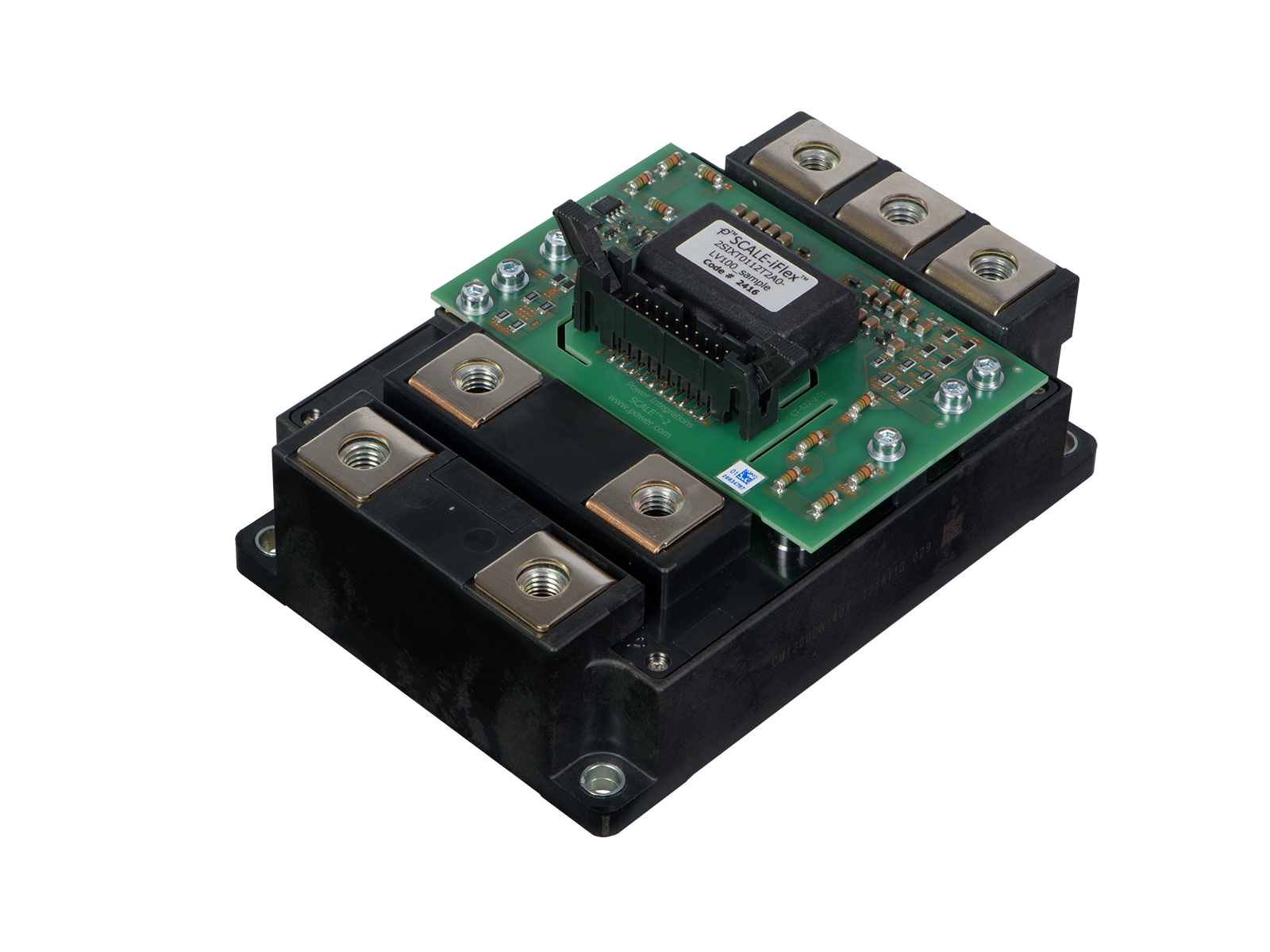

The SCALE-iFlex XLT plug-and-play driver is a compact dual channel gate driver designed for the operation of XHP 2 and LV100 power modules in two and three-level PV application. The driver features an electrical interface, NTC read-out, and a built-in DC-DC power supply.

Key Features

Highly Integrated, Compact Footprint

  • Ready-to-use dual-channel gate driver solution optimized for XHP 2 and LV100 power modules
  • 1 W output power per channel at maximum ambient temperature
  • +15 / -8 A maximum gate current
  • Isolated NTC readout signal
  • Operation altitude up to 4000 m
  • - 40 °C to 85 °C operating ambient temperature

Protection / Safety Features

  • Short circuit protection (VCE,SAT monitoring)
  • Undervoltage lock-out (UVLO) for primary and secondary sides
  • Optional conformal coating applied on both sides of PCB

Comprehensive Safety Assurance

  • 100% production tests include both partial discharge testing and transformer HIPOT testing
  • Creepage on PCB and transformer material and clearance distances between primary and secondary sides meets IEC 61800-5-1 reinforced for two-level applications with 1700V power modules and basic isolation for three-level-applications with 1200 V power modules
  • RoHS compliant
