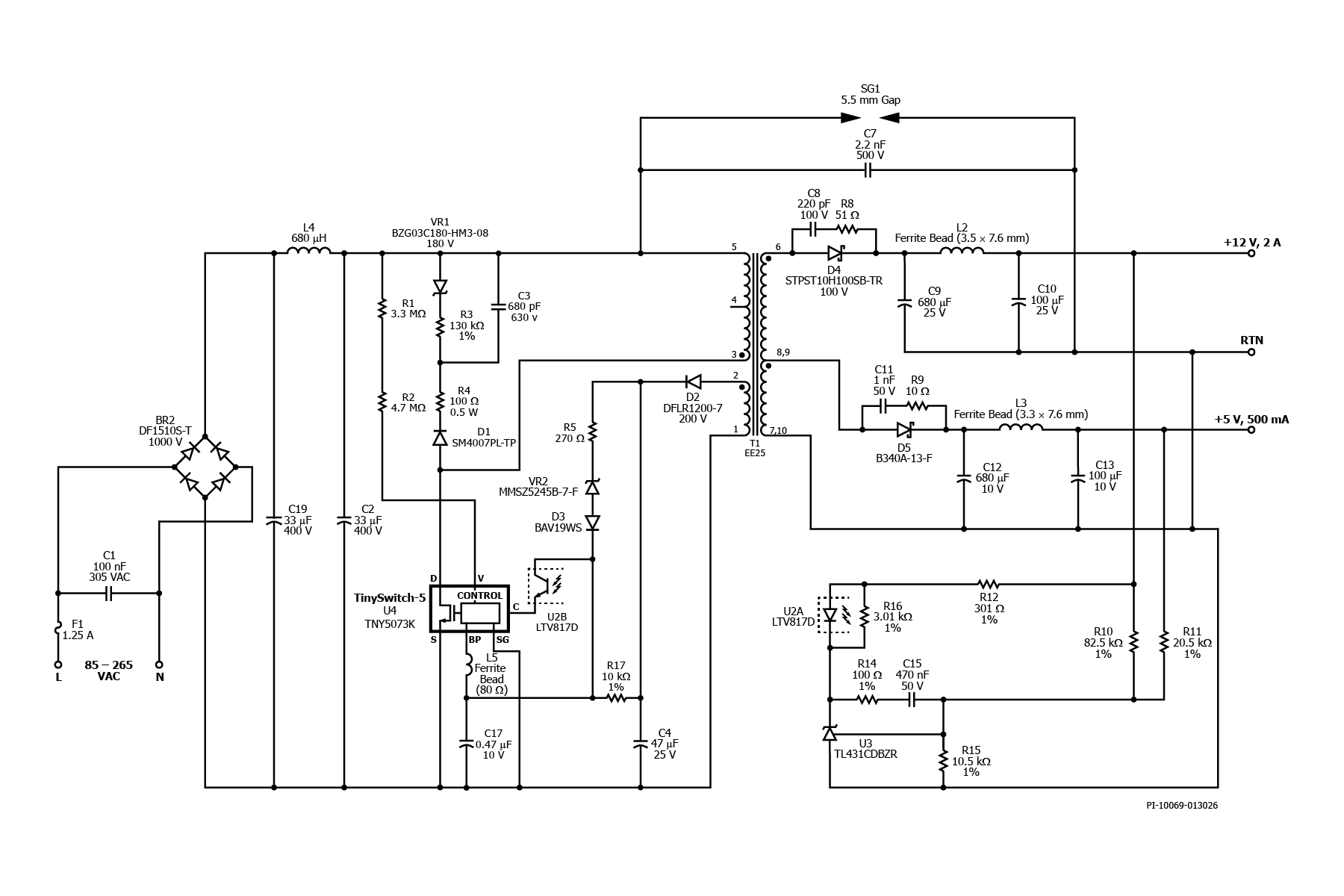

RDR-1016 - 26.5 W Dual Output Isolated Flyback Power Supply for Appliances Using TinySwitch-5

26.5 W dual output isolated flyback power supply for appliances using TinySwitch-5 (TNY5073K)

  • Output: 12 V, 2A and 5 V, 0.5 A
  • Input: 85 - 265 VAC
  • <150 kHz switching frequency for small transformer
  • >86% full load efficiency at 115 VAC
  • >87% full load efficiency at 230 VAC
  • >85.5% average efficiency at 115 VAC and 230 VAC
  • <50 mW no-load input power at 230 VAC
