TOPSwitch-HX

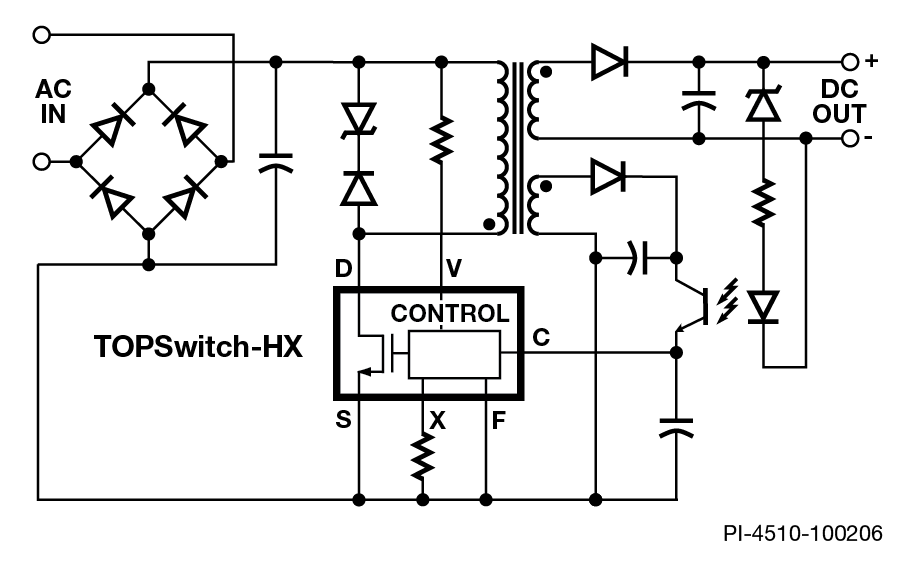

采用增强的EcoSmart技术的集成离线式开关,具有先进的特性和扩展的功率范围

应用
筛选器 筛选产品
隐藏筛选器
Filter Products
显示1 - 43项产品, 共43项
Product Parts Table
产品
数据手册
輸出功率 (最大) - 封闭式, 230V
輸出功率 (最大) - 开架式, 230V
IC封装
击穿电压
輸出功率 (最大) - 封闭式, 通用
輸出功率 (最大) - 开架式, 通用
开关频率 (最大)
控制功能
保护功能
自动重启阈值
安装类型
产品类型
输入电压 (最大)
输入电压 (最小)
运作温度 (最大)
运作温度 (最小)
控制方式
内部开关
自动重启和过压反应
过热反应
拓扑结构
次级回应
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 21.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 13.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 10.0 W
Output Power (Max) - Open Frame, 230V 21.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 13.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 表面安装
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 9.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 6.0 W
Output Power (Max) - Open Frame, Univ 10.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 43.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 29.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 43.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 29.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 表面安装
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 15.0 W
Output Power (Max) - Open Frame, 230V 25.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 9.0 W
Output Power (Max) - Open Frame, Univ 15.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 表面安装
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 16.0 W
Output Power (Max) - Open Frame, 230V 28.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 11.0 W
Output Power (Max) - Open Frame, Univ 20.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 30.0 W
Output Power (Max) - Open Frame, 230V 62.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 20.0 W
Output Power (Max) - Open Frame, Univ 43.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 表面安装
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 19.0 W
Output Power (Max) - Open Frame, 230V 30.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 13.0 W
Output Power (Max) - Open Frame, Univ 22.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 40.0 W
Output Power (Max) - Open Frame, 230V 81.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 26.0 W
Output Power (Max) - Open Frame, Univ 57.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package eSIP-7F
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 表面安装
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 21.0 W
Output Power (Max) - Open Frame, 230V 34.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 15.0 W
Output Power (Max) - Open Frame, Univ 26.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 60.0 W
Output Power (Max) - Open Frame, 230V 119.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 40.0 W
Output Power (Max) - Open Frame, Univ 86.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 表面安装
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 25.0 W
Output Power (Max) - Open Frame, 230V 41.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 19.0 W
Output Power (Max) - Open Frame, Univ 30.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Open Frame, 230V 157.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 55.0 W
Output Power (Max) - Open Frame, Univ 119.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package SMD-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 表面安装
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 29.0 W
Output Power (Max) - Open Frame, 230V 48.0 W
IC Package DIP-8C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 22.0 W
Output Power (Max) - Open Frame, Univ 35.0 W
Switching Frequency (max) 66 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 105.0 W
Output Power (Max) - Open Frame, 230V 195.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 70.0 W
Output Power (Max) - Open Frame, Univ 148.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 128.0 W
Output Power (Max) - Open Frame, 230V 238.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 80.0 W
Output Power (Max) - Open Frame, Univ 171.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 275.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 200.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 275.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 200.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 147.0 W
Output Power (Max) - Open Frame, 230V 275.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 93.0 W
Output Power (Max) - Open Frame, Univ 200.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 177.0 W
Output Power (Max) - Open Frame, 230V 333.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 118.0 W
Output Power (Max) - Open Frame, Univ 254.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 177.0 W
Output Power (Max) - Open Frame, 230V 333.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 118.0 W
Output Power (Max) - Open Frame, Univ 254.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 177.0 W
Output Power (Max) - Open Frame, 230V 333.0 W
IC Package TO-220-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 118.0 W
Output Power (Max) - Open Frame, Univ 254.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启
Output Power (Max) - Enclosed, 230V 177.0 W
Output Power (Max) - Open Frame, 230V 333.0 W
IC Package eSIP-7C
Breakdown Voltage 700 V
Output Power (Max) - Enclosed, Univ 118.0 W
Output Power (Max) - Open Frame, Univ 254.0 W
Switching Frequency (max) 132 kHz
Control Features 可选择电流限制, 频率抖动, 软启动, 自动重启/锁存故障反应, 开/关控制
Protection Features 输出欠压, 过温, 输出过压, 输出短路, 输出开环, 输出过载, 远程关闭
Auto-Restart Threshold 5.8
Mounting Type 通孔
Product Type IC
Voltage - Input (Max) 265 V
Voltage - Input (Min) 85 V
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Control Scheme 次级侧
Internal Switch Yes
Auto-Restart & Overvoltage Response 自动重启
Over-Temperature Response 滞回
Topology 反激式
Secondary Response 自动重启

产品详情

说明:

TOPSwitch-HX在一个单片器件上集成了一个700 V的功率MOSFET、高压开关电流源、PWM控制器、振荡器、热关断电路、故障保护及其他控制电路。

更低的系统成本,更高的设计灵活性

  • 多模式工作方式可实现在各种负载下的效率最大化
  • 基于PI在高功率和高可靠性封装方面的经验开发的全新eSIP-7C和eSIP-7F封装
  • P、G或M封装无需使用散热片最大输出功率可达35 W,230 VAC时最大输出功率达48 W
  • 输出过压保护(OVP)可由用户对锁存/非锁存关断功能进行编程,并可快速进行AC重置
  • 线电压欠压(UV)检测可以防止关机时的输出脉冲干扰
  • 线电压过压(OV)关断电路提高了对输入浪涌的耐受力
  • 精确可编程的电流限流
  • 优化的线电压前馈,用于抑制线电压纹波
  • 132 kHz的工作频率(254Y-258Y及所有的E封装)降低了变压器及电源的尺寸(在视频应用中可选择半频工作)
  • 严格的I2f参数容差降低了系统成本
  • 频率抖动降低了EMI滤波成本
  • 散热片连接到源极,可降低电磁干扰
  • 改进自动重启动功能,在短路及开环故障情况下输出功率小于最大功率的3%
  • 精确的迟滞热关断功能可自动恢复,无需重置
  • 完全集成的软启动最大程度降低了启动时的压力
  • 增加了漏极引脚与其他所有引脚之间的爬电距离,提高了现场应用可靠性

EcoSmart – 节能

  • 在整个负载范围内实现高效率
  • 空载功耗
    • 230 VAC时小于200 mW
  • 1 W输入时的待机功耗
    • 110 VAC输入时>600 mW
    • 265 VAC输入时>500 mW

eSIP (E)封装(eSIP封装信息

  • 较低的结-外壳热阻(每瓦2°C)
  • 较低高度适合空间狭小的适配器应用
  • 简单的夹片式散热片降低了制造成本
  • 在使用夹片式散热片的情况下,通过IEC 60068的冲击及振动测试
  • eSIP夹片和绑带制造商信息
  • 支持输出功率最高118 W的适配器应用(230 VAC时为177 W)
  • 外部流限调整及远程开/关控制
  • 电压监测引脚(OV、UV、线电压前馈、OVP、重置)
  • 可选开关频率(132/66 kHz)

应用:

  • LCD显示器
  • 个人电脑
  • 小型服务器
  • 笔记本电脑适配器
  • 机顶盒
  • 数字电视
  • 打印机
  • DVD播放器和刻录机
  • UPS
  • 视频游戏
  • 宽带调制解调器
  • 手机适配器
  • 音频放大器
