Qspeed H-Series Diodes
Ultra-Fast Silicon Diode
- VRRM - 600 V, 625 V. 650 V
- IF(AVG) - 3 A - 30 A
- QRR - 5.9 nC - 180 nC
Applications
|
Product
|
Data Sheet
|
Voltage - Reverse Recovery (Max)
|
Current - Forward (avg)
|
Voltage - Forward (typ)
|
Reverse Recovery Charge @25°C
|
Reverse Recovery Charge @125°C
|
IC Package
|
Mounting Type
|
Product Type
|
Temperature - Operating (Max)
|
Temperature - Operating (Min)
|
Topology
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
3 A
|
Voltage - Forward (typ)
2.100 V
|
|
|
IC Package
TO-263AB
|
Mounting Type
Through Hole
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
3 A
|
Voltage - Forward (typ)
2.100 V
|
|
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
5 A
|
Voltage - Forward (typ)
2.200 V
|
|
|
IC Package
TO-263AB
|
Mounting Type
Through Hole
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
5 A
|
Voltage - Forward (typ)
2.200 V
|
|
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
8 A
|
Voltage - Forward (typ)
2.200 V
|
|
|
IC Package
TO-263AB
|
Mounting Type
Through Hole
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
8 A
|
Voltage - Forward (typ)
2.200 V
|
|
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
12 A
|
Voltage - Forward (typ)
2.300 V
|
|
|
IC Package
TO-263AB
|
Mounting Type
Through Hole
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
600V
|
Current - Forward (avg)
12 A
|
Voltage - Forward (typ)
2.300 V
|
|
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
625V
|
Current - Forward (avg)
20 A
|
Voltage - Forward (typ)
2.300 V
|
Reverse Recovery Charge @25°C
51.0 nC
|
Reverse Recovery Charge @125°C
140.0 nC
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
650V
|
Current - Forward (avg)
20 A
|
Voltage - Forward (typ)
2.650 V
|
Reverse Recovery Charge @25°C
51.0 nC
|
Reverse Recovery Charge @125°C
140.0 nC
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
625V
|
Current - Forward (avg)
30 A
|
Voltage - Forward (typ)
2.300 V
|
Reverse Recovery Charge @25°C
65.0 nC
|
Reverse Recovery Charge @125°C
180.0 nC
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
|
|
Data Sheet
View Data Sheet
|
Voltage - Reverse Recovery (Max)
650V
|
Current - Forward (avg)
30 A
|
Voltage - Forward (typ)
2.750 V
|
Reverse Recovery Charge @25°C
65.0 nC
|
Reverse Recovery Charge @125°C
180.0 nC
|
IC Package
TO-220AC
|
Mounting Type
Surface Mount
|
Product Type
Passive
|
Temperature - Operating (Max)
150 °C
|
Temperature - Operating (Min)
-55 °C
|
Topology
Boost PFC
|
Product Details

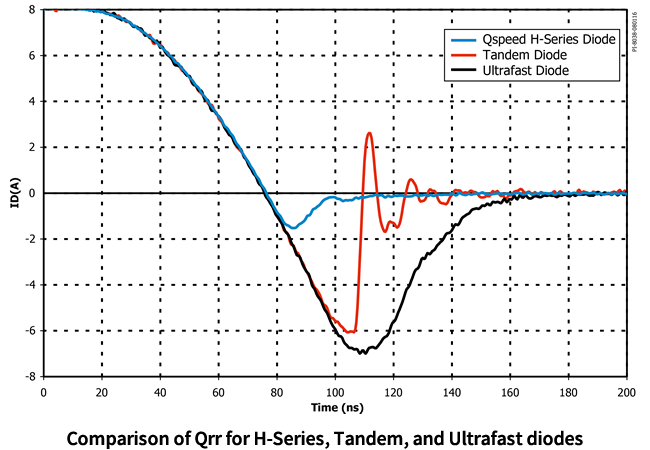

Qspeed diodes have the lowest QRR of any Silicon diode. Their recovery characteristics increase efficiency, reduce EMI and eliminate snubbers.
Product Highlights
Features
- Now available in TO-263 (D2PAK) package
- Low QRR, Low IRRM, Low tRR
- High dIF/dt capable (1000A/µs)
- Soft recovery
Benefits
- Increases efficiency
- Eliminates need for snubber circuits
- Reduces EMI filter component size & count
- Enables extremely fast switching
Applications
- Power Factor Correction (PFC) Boost Diode
- Motor drive circuits
- DC-AC Inverters
Related Information
Simulate Qspeed diodes on PowerEsim
Power Integrations has partnered with PowerEsim to bring you a fast and accurate way to simulate the superior performance of Qspeed products. Follow the link by clicking on the PowerEsim logo below.
