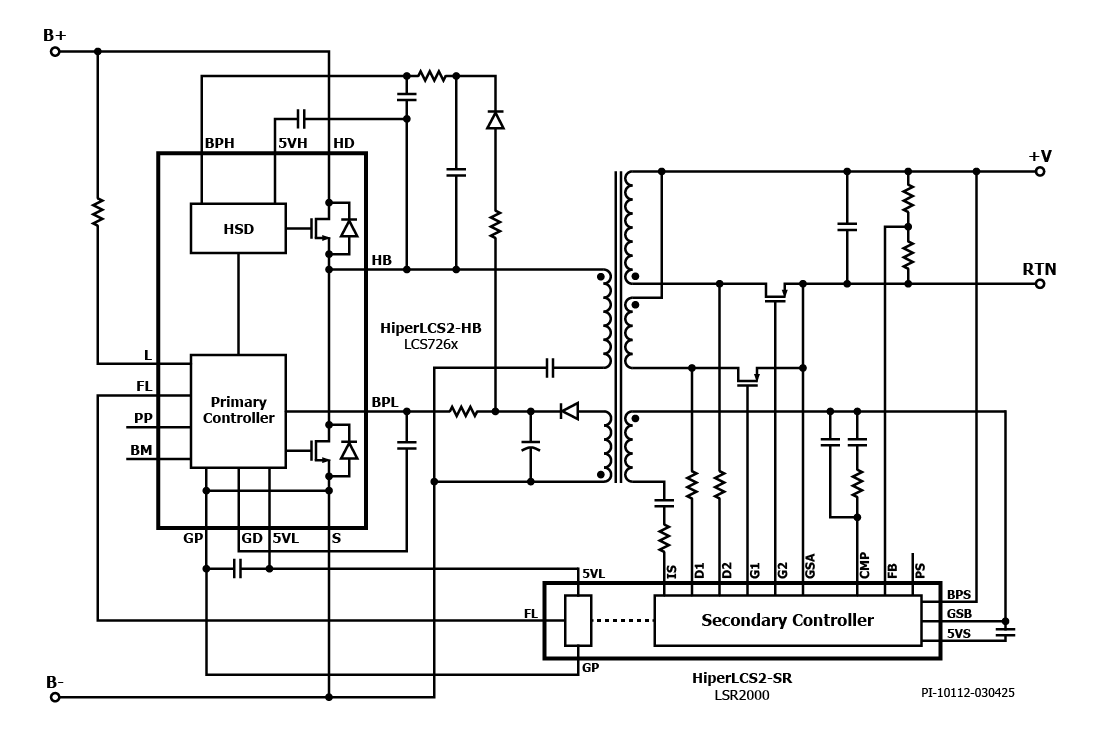

Typical Application Schematic
HiperLCS2-HB Power Device, InSop-24C Package
HiperLCS2-SR Isolation Device, InSop-24D Package
Typical Application Schematic
HiperLCS2-HB Power Device, InSop-24C Package
+ 2 HiperLCS2-SR Isolation Device, InSop-24D Package

HiperLCS-2

HiperLCS-2 is a high efficiency, off-line LLC Switcher IC Chipset.  It consists of:

  • HiperLCS2-HB, a Half-bridge Power Device with Integrated 600 V FREDFETs, and
  • HiperLCS2-SR, a Safety Isolation Device with Synchronous Rectification and FluxLink Feedback

Note: HiperLCS-2 can easily pair with the HiperPFS-5 PFC IC.

Applications
Start Designing
Filters Filter Products
Hide Filters
Filter Products
Showing 1 - 8 of 8 Products
Product Parts Table
Product
Data Sheet
Output Power (Max) - Continuous, 380V
Output Power (Max) - Peak, 380V
Breakdown Voltage
Switching Frequency (max)
Switching Frequency (Avg. 230 VAC)
Switching Frequency (min)
Control Scheme
Topology
Internal Switch
Output Profile
Product Type
IC Package
Voltage - Output (Min)
Voltage Input (Min, DC)
Voltage Input (Max, DC)
Protection Features
Auto-Restart & Overvoltage Response
Secondary Response
Temperature - Operating (Min)
Temperature - Operating (Max)
MSL Rating

LCS7260C

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 80 W
Output Power (Max) - Peak, 380V 120 W
Breakdown Voltage 600 V
Topology LLC Half Bridge
Internal Switch Yes
Output Profile CV
Product Type IC
IC Package InSOP-24C
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3

LCS7262C

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 120 W
Output Power (Max) - Peak, 380V 180 W
Breakdown Voltage 600 V
Topology LLC Half Bridge
Internal Switch Yes
Output Profile CV
Product Type IC
IC Package InSOP-24C
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3

LCS7265C

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 220 W
Output Power (Max) - Peak, 380V 270 W
Breakdown Voltage 600 V
Topology LLC Half Bridge
Internal Switch Yes
Output Profile CV
Product Type IC
IC Package InSOP-24C
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
HiperLCS2-SR Isolation Device InSOP-24D Package

LSR2000C-H001

View Details
Data Sheet View Data Sheet
Switching Frequency (max) 135 kHz
Switching Frequency (Avg. 230 VAC) 90 kHz
Switching Frequency (min) 23 kHz
Control Scheme Fluxlink
Product Type IC
IC Package InSOP-24D
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
HiperLCS2-SR Isolation Device InSOP-24D Package

LSR2000C-H002

View Details
Data Sheet View Data Sheet
Switching Frequency (max) 183 kHz
Switching Frequency (Avg. 230 VAC) 120 kHz
Switching Frequency (min) 30 kHz
Control Scheme Fluxlink
Product Type IC
IC Package InSOP-24D
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
HiperLCS2-SR Isolation Device InSOP-24D Package

LSR2000C-H003

View Details
Data Sheet View Data Sheet
Switching Frequency (max) 270 kHz
Switching Frequency (Avg. 230 VAC) 180 kHz
Switching Frequency (min) 45 kHz
Control Scheme Fluxlink
Product Type IC
IC Package InSOP-24D
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
HiperLCS2-SR Isolation Device InSOP-24D Package

LSR2000C-H004

View Details
Data Sheet View Data Sheet
Switching Frequency (max) 366 kHz
Switching Frequency (Avg. 230 VAC) 240 kHz
Switching Frequency (min) 60 kHz
Control Scheme Fluxlink
Product Type IC
IC Package InSOP-24D
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
HiperLCS2-SR Isolation Device InSOP-24D Package

LSR2000C-H005

View Details
Data Sheet View Data Sheet
Switching Frequency (max) 366 kHz
Switching Frequency (Avg. 230 VAC) 240 kHz
Switching Frequency (min) 60 kHz
Control Scheme Fluxlink
Product Type IC
IC Package InSOP-24D
Voltage - Output (Min) 5 V
Voltage Input (Min, DC) 345V
Voltage Input (Max, DC) 440V
Protection Features Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
Auto-Restart & Overvoltage Response Auto-restart
Secondary Response Auto-restart
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Showing 1 - 8 of 8 Products
Back to Top

Product Details

Description

The HiperLCS™-2 family of IC chipsets dramatically simplifies the design and manufacture of LLC resonant power converters, particularly those requiring high efficiency and/or compact size and delivering up to 220 W continuous output power with no heat sink. The HiperLCS2-HB (LCS72xxC) primary-side devices incorporate 600 V FREDFET in a half bridge arrangement with control, level shifting, drive and self-powered start-up. The HiperLCS2-SR (LSR2000C) master controller device provides reinforced isolated feedback, output sensing and SR management.

HiperLCS-2 family devices incorporate multiple protection features including: line over and undervoltage protection, output overvoltage and over-temperature shutdown. Device fault response options support common combinations of latching and auto-restart behaviors required by applications such as chargers,

Product Highlights

Highly Integrated, Compact Footprint

  • Up to 98.1% efficiency
  • Very low component count and small footprint package
  • Eliminates heatsink up to 220 W continuous
  • Self-powered start-up
  • 600 V FREDFET, rugged fast recovery body diode, current sensing
  • HB Auto dead-time and hard switch detect
  • Selectable center frequency (90, 120, 180, 240 kHz)
  • Secondary-side sensing and feedback control with fast transient response
  • Synchronous rectification driver
  • Integrated FluxLink™, HIPOT-isolated control link

EcoSmart™ – Energy Efficient

  • As low as 41 mW no-load including line sense
  • Output always in regulation, 0-100% load step
  • Easily meets all global energy efficiency regulations

Advanced Protection / Safety Features

  • HB and SR shoot-through protection
  • Power-up pin open/short check
  • System short-circuit, thermal, HB OCP, FB open, fast input line UV/OV and PMAX protection

Optional Features

  • Auto-restart or latching fault response for output OVP/UVP
  • Latching or hysteretic primary over-temperature protection
  • External fault detect and remote on/off
  • Inrush-relay drive output pin
  • Provides start-up bias for PFC stage

Full Safety and Regulatory Compliance

  • Reinforced isolation, isolation voltage >4000 VAC
  • UL1577, CQC and TUV (EN62368-1) safety approved

Applications

  • High efficiency power supplies up to 220 W continuous
  • Consumer electronics − TV, PC, e-bike and tool chargers
