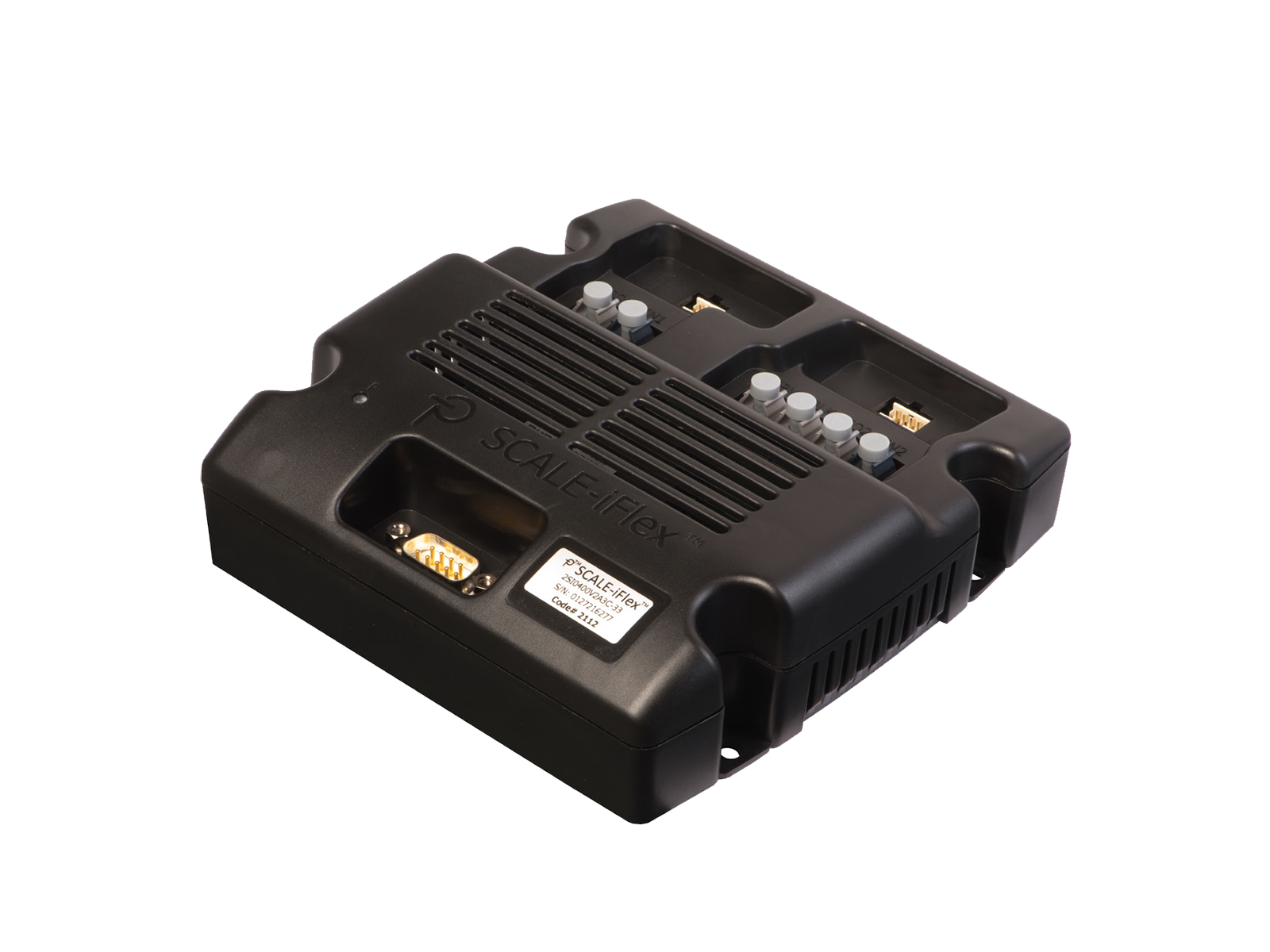

2SI0400V2A3C-33
Ready-to-use gate driver solution optimized for power modules from 1200 V to 3300 V blocking voltage consists of a central Isolated Master Control (IMC) 2SI0400x2xxC and up to four Module Adapted Gate Drivers (MAGs) 2SM0120D2xxC together with a cable set.
Product Details
<p>The SCALE-iFlex™ gate driver family consists of a central Isolated Master Control (IMC) <strong>2SI0400x2xxC</strong> and up to four Module Adapted Gate Drivers (MAGs) <strong>2SM0120D2xxC </strong>together with a cable set. The IMC is designed for operation of power modules with a blocking voltage of up to 3300 V, whereas the MAGs are available in variants optimized for power modules from different suppliers and with various device technologies in the 3300 V voltage class.</p>
<p>Product Features</p>
<ul>
<li>Ready-to-use gate driver system (IMC + MAGs)</li>
<li>Easy paralleling of up to 4 modules</li>
<li>Factory conformal coating</li>
</ul>
Specifications
| Max Switching Frequency | 25.00 kHz |
| IGBT Voltage Class |
1200 V
1700 V
3300 V
|
| Technology | SCALE-2 |
| Power - Output/Channel (Max) | 6.00 W |
| Temperature - Operating (Min) | -40 ℃ |
| Temperature - Operating (Max) | 85 ℃ |
| Interface Type | Fiber Optic |
| Number of Channels | 2 |
| Product Type | Board |
| Product Sub-Type | PnP Driver |
| Supported Module Type | IGBT |
| Main/Peripheral | N/A |
| Supported Topologies |
2-level Voltage Source
3-level NP-Clamped - Type 1
3-level NP-Clamped - Type 2
|
| Paralleling Support? | Yes |
| Protection Features |
UVLO(Sec-side)
UVLO(Pri-side)
|
| Conformal Coated? | Yes |
| Driving Mode | Direct-Independent |
| Logic Input Voltage | 15 |
| Supply Voltage (Typ) | 15.00 V |
| Isolation Technology | Galvanic |
| Isolation Type | Reinforced |
