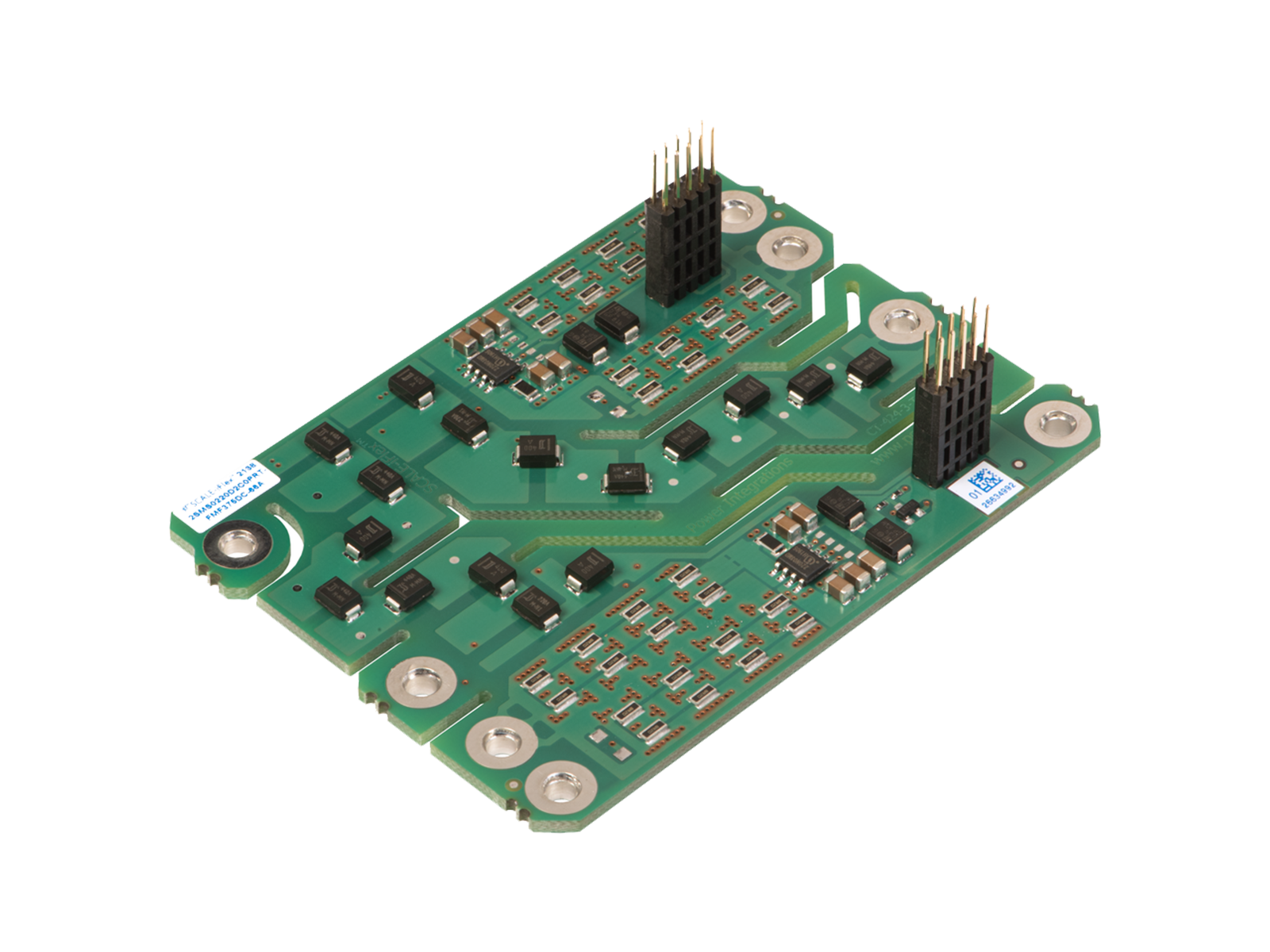

2SMS0220D2C0C-CM450DA-66X
Plug-and-play gate drivers for 100x140 mm IGBT modules up to 3.3 kV, particularly applicable to use in electric railway trains and trams.
Applications
Product Details
SCALE-iFlex Single are gate-drivers for “New Dual” 100 x 140 mm IGBT modules. Each consists of an Isolated Master Control (IMC), and a Module Adapted Gate Driver (MAG). The IMC is designed for operation of power modules with a blocking voltage of up to 3300 V, whereas the MAGs are available in variants optimized for different power modules, suppliers and chip technologies in the voltage classes up to 3300 V.
Specifications
| Supported Module(s) | CM450DA-66X |
| Max Switching Frequency | 25.00 kHz |
| IGBT Voltage Class | 3300 V |
| Technology | SCALE-2 |
| Power - Output/Channel (Max) | 3.00 W |
| Interface Type | Electrical |
| Module Housing | LV 100 |
| IGBT Manufacturer | Mitsubishi |
| Number of Channels | 2 |
| Product Type | Board |
| Product Sub-Type | PnP Driver |
| Supported Module Type | IGBT |
| Main/Peripheral | N/A |
| Supported Topologies |
2-level Voltage Source
3-level NP-Clamped - Type 1
3-level NP-Clamped - Type 2
|
| Protection Features |
Adv Active Clamping
Over-voltage
Short Circuit
UVLO(Sec-side)
UVLO(Pri-side)
|
| Conformal Coated? | Yes |
| Driving Mode | Direct-Independent |
| Connection Type to IGBT | Direct |
| Gate Turn-on Voltage | +15.00 V |
| Gate Turn-off Voltage | -9.30 V |
| Isolation Technology | Galvanic |
| Isolation Type | Reinforced |
