LQ20N200CQ
AEC-Q101 Qualified Common-Cathode Diode for Automotive Applications
- VRRM - 200 V - 600 V
- IF(AVG) - 10 A - 20 A
- QRR - 9.2 nC - 48.4 nC
Applications
Product Details
Qspeed™ diodes have the lowest QRR of any Silicon diode. Their recovery characteristics increase efficiency, reduce EMI and eliminate snubbers.
Product Highlights
Features
- Low QRR, Low IRRM, Low tRR
- Soft recovery
Benefits
- Increases efficiency
– Eliminates need for snubber circuits
– Reduces EMI filter component size & count - Enables extremely fast switching
Applications
- Automotive
– AEC-Q101 qualified
– Fab, assembly and test certified to IATF 16949
– ESD HBM classification H0
Related Information
Simulate Qspeed diodes on PowerEsim
Power Integrations has partnered with PowerEsim to bring you a fast and accurate way to simulate the superior performance of Qspeed products. Follow the link by clicking on the PowerEsim logo below.
Specifications
| Current - Forward (avg) | 20.00 A |
| Reverse Recovery Charge @25°C | 20.00 nC |
| Reverse Recovery Charge @125°C | 48.40 nC |
| Voltage - Reverse Recovery (Max) | 200.00V |

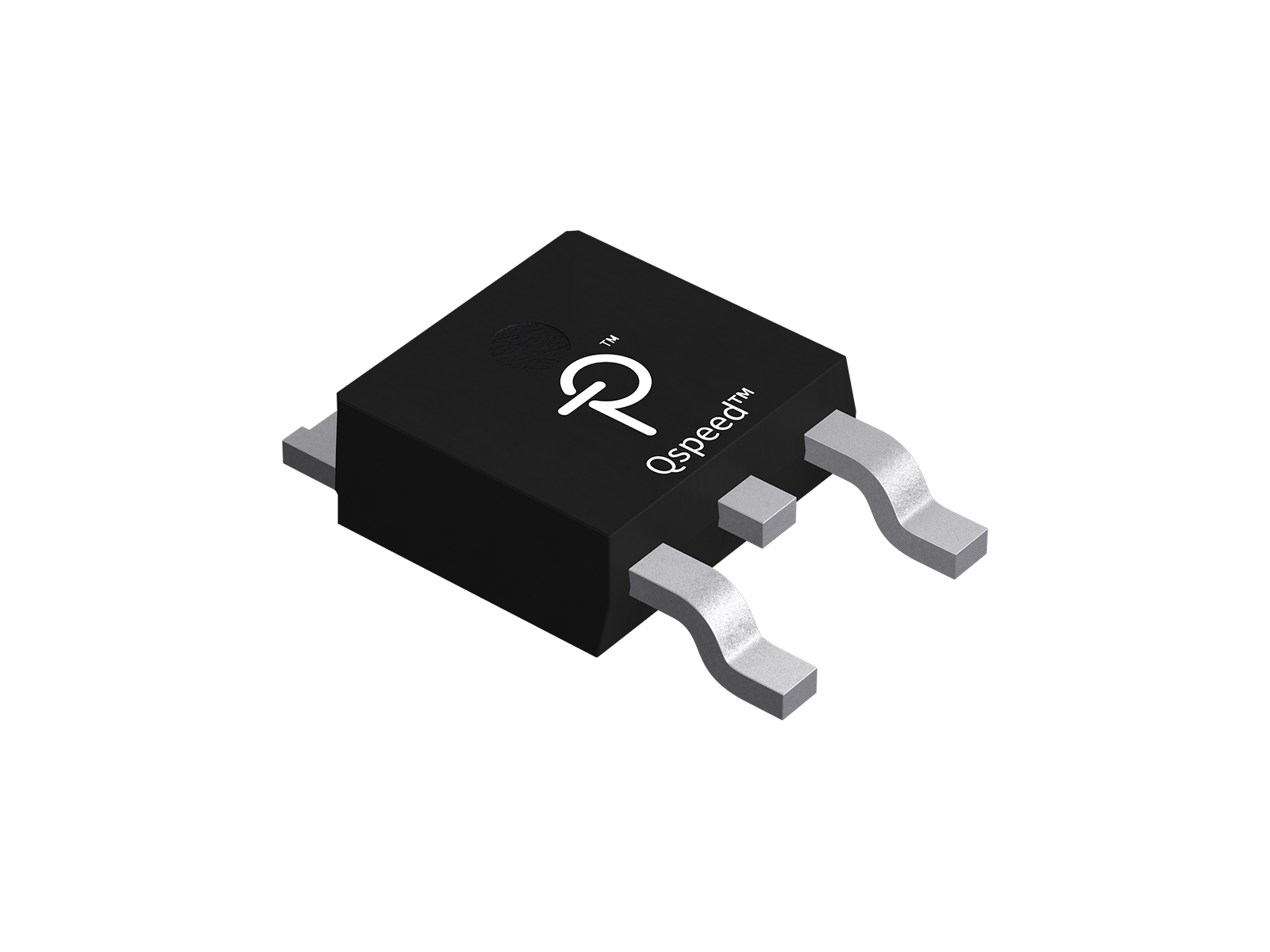

| IC Package | TO-252DPAK |
| Mounting Type | Surface Mount |
| Temperature - Operating (Min) | -40 °C |
| Temperature - Operating (Max) | 150 °C |
| Product Sub-Type | Diode |
