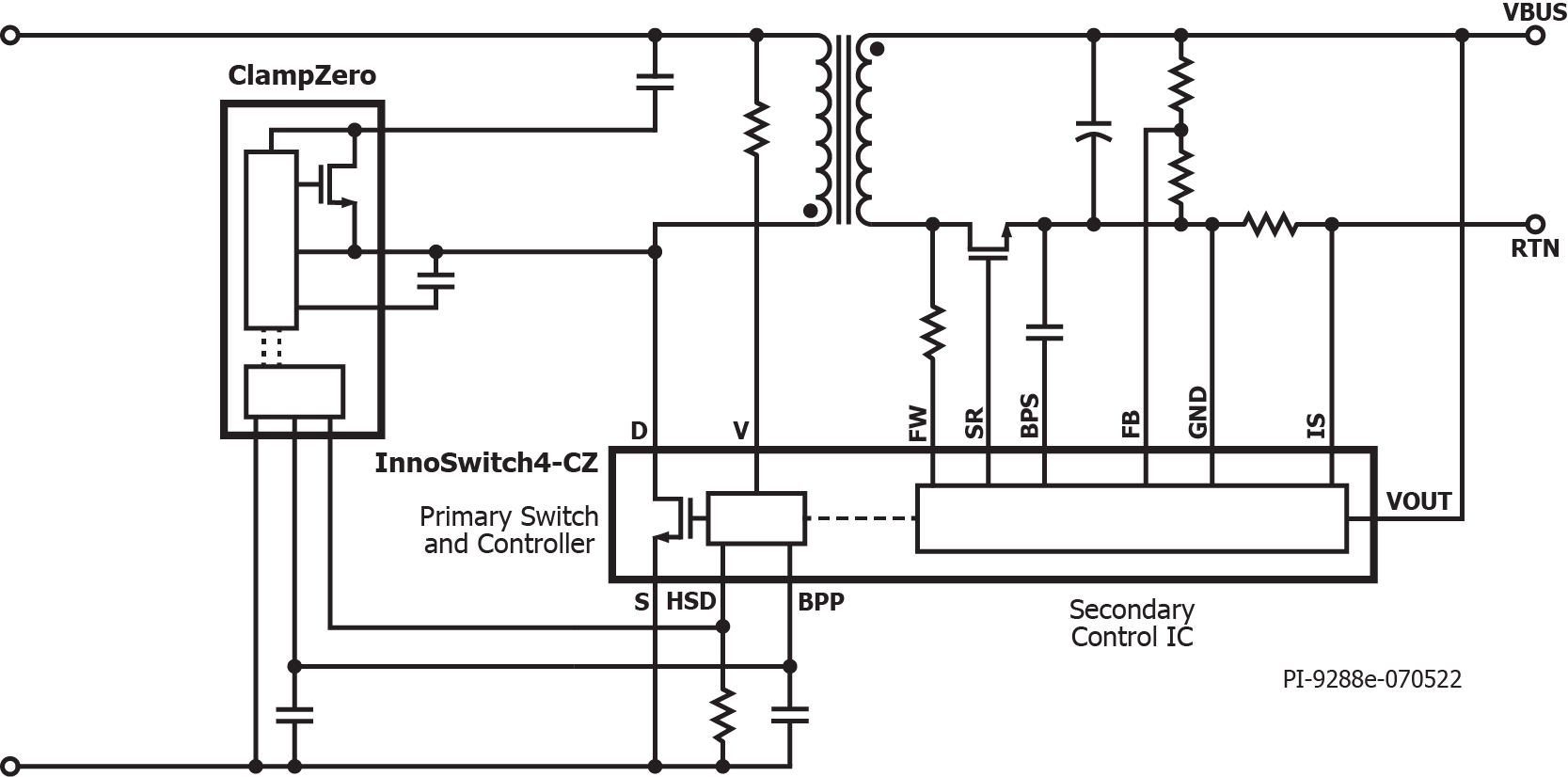

Typical Application
InnoSwitch4-CZ in InSOP-24D Package
Typical Application
InnoSwitch4-CZ in InSOP-24D Package
+ 6

InnoSwitch4-CZ

Off-Line CV/CC Flyback Switcher IC with 750 V PowiGaN, Active Clamp Drive and Synchronous Rectification, Pairs With ClampZero Active Clamp IC for Zero Voltage Switching and Maximum Efficiency

Applications
Start Designing
Filters Filter Products
Hide Filters
Filter Products
Showing 1 - 50 of 57 Products
Product Parts Table
Product
Data Sheet
Output Power (Max) - Enclosed, 230V
Output Power (Max) - Enclosed, Univ
Output Power (Max) - Continuous, 380V
Output Profile
Protection Features
Output Power (Max) - Peak, 380V
Output Power (Max) - Open Frame, 230V
Output Power (Max) - Open Frame, Univ
Breakdown Voltage
Auto-Restart & Overvoltage Response
Auto-Restart Threshold
Over-Temperature Response
Secondary Response
Input Under-voltage Threshold
DCM Only?
IC Package
Voltage - Input (Min)
Voltage - Input (Max)
Voltage - Output (Min)
Voltage - Output (Max)
PowiGaN?
Control Scheme
Internal Switch
Cable Drop Compensation
Product Type
Switching Frequency (max)
Topology
Temperature - Operating (Min)
Temperature - Operating (Max)
MSL Rating
InnoSwitch4-CZ in InSOP-24D Package

INN4072C-H181

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 50.0 W
Output Power (Max) - Enclosed, Univ 42.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 55.0 W
Output Power (Max) - Open Frame, Univ 50.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4072C-H182

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 50.0 W
Output Power (Max) - Enclosed, Univ 42.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 55.0 W
Output Power (Max) - Open Frame, Univ 50.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4072C-H183

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 50.0 W
Output Power (Max) - Enclosed, Univ 42.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 55.0 W
Output Power (Max) - Open Frame, Univ 50.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4072C-H184

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 50.0 W
Output Power (Max) - Enclosed, Univ 42.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 55.0 W
Output Power (Max) - Open Frame, Univ 50.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 90%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4072C-H185

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 50.0 W
Output Power (Max) - Enclosed, Univ 42.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 55.0 W
Output Power (Max) - Open Frame, Univ 50.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4072C-H186

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 50.0 W
Output Power (Max) - Enclosed, Univ 42.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 55.0 W
Output Power (Max) - Open Frame, Univ 50.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4073C-H181

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 75.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4073C-H182

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 75.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4073C-H183

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 75.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4073C-H185

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 75.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4073C-H186

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 70.0 W
Output Power (Max) - Enclosed, Univ 60.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 75.0 W
Output Power (Max) - Open Frame, Univ 70.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4074C-H181

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 90.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4074C-H182

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 90.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4074C-H183

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 90.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4074C-H185

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 90.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4074C-H186

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 85.0 W
Output Power (Max) - Enclosed, Univ 75.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 90.0 W
Output Power (Max) - Open Frame, Univ 85.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4075C-H181

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4075C-H182

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4075C-H183

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4075C-H185

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4075C-H186

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 90.0 W
Output Power (Max) - Enclosed, Univ 80.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 100.0 W
Output Power (Max) - Open Frame, Univ 90.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4076C-H181

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 115.0 W
Output Power (Max) - Enclosed, Univ 100.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 125.0 W
Output Power (Max) - Open Frame, Univ 115.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4076C-H182

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 115.0 W
Output Power (Max) - Enclosed, Univ 100.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 125.0 W
Output Power (Max) - Open Frame, Univ 115.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4076C-H183

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 115.0 W
Output Power (Max) - Enclosed, Univ 100.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 125.0 W
Output Power (Max) - Open Frame, Univ 115.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4076C-H184

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 115.0 W
Output Power (Max) - Enclosed, Univ 100.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 125.0 W
Output Power (Max) - Open Frame, Univ 115.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 90%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4076C-H185

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 115.0 W
Output Power (Max) - Enclosed, Univ 100.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 125.0 W
Output Power (Max) - Open Frame, Univ 115.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4076C-H186

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 115.0 W
Output Power (Max) - Enclosed, Univ 100.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 125.0 W
Output Power (Max) - Open Frame, Univ 115.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4077C-H181

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 135.0 W
Output Power (Max) - Enclosed, Univ 115.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 145.0 W
Output Power (Max) - Open Frame, Univ 135.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4077C-H182

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 135.0 W
Output Power (Max) - Enclosed, Univ 115.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 145.0 W
Output Power (Max) - Open Frame, Univ 135.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4077C-H183

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 135.0 W
Output Power (Max) - Enclosed, Univ 115.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 145.0 W
Output Power (Max) - Open Frame, Univ 135.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4077C-H184

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 135.0 W
Output Power (Max) - Enclosed, Univ 115.0 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 145.0 W
Output Power (Max) - Open Frame, Univ 135.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 90%
Over-Temperature Response Latch Off
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4077C-H185

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 135.0 W
Output Power (Max) - Enclosed, Univ 115.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 145.0 W
Output Power (Max) - Open Frame, Univ 135.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4077C-H186

View Details
Data Sheet View Data Sheet
Output Power (Max) - Enclosed, 230V 135.0 W
Output Power (Max) - Enclosed, Univ 115.0 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Open Frame, 230V 145.0 W
Output Power (Max) - Open Frame, Univ 135.0 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4174C-H187

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 155 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 170 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold 180
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4174C-H188

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 155 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 170 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
Input Under-voltage Threshold 90
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4174C-H189

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 155 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 170 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
Input Under-voltage Threshold 180
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4174C-H190

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 155 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 170 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 90%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold Programmable
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4174C-H191

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 155 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 170 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold 180
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4174C-H192

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 155 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 170 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
Input Under-voltage Threshold Programmable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4175C-H187

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 160 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 180 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold 180
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4175C-H188

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 160 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 180 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
Input Under-voltage Threshold 90
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4175C-H189

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 160 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 180 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
Input Under-voltage Threshold 180
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4175C-H190

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 160 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 180 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 90%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold Programmable
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4175C-H191

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 160 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 180 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold 180
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4175C-H192

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 160 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 180 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Latch Off
Input Under-voltage Threshold Programmable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4176C-H187

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 180 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 200 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 63%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold 180
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4176C-H188

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 180 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 200 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 3.45V
Over-Temperature Response Latch Off
Secondary Response Latch Off
Input Under-voltage Threshold 90
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4176C-H189

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 180 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 200 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Latch Off
Auto-Restart Threshold 63%
Over-Temperature Response Latch Off
Secondary Response Latch Off
Input Under-voltage Threshold 180
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4176C-H190

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 180 W
Output Profile CC
Protection Features Overtemperature, Open SR FET Detection, Input Undervoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 200 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold 90%
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold Programmable
DCM Only? Enable
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
InnoSwitch4-CZ in InSOP-24D Package

INN4176C-H191

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 180 W
Output Profile CV
Protection Features Overtemperature, Open SR FET Detection, Input Overvoltage, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
Output Power (Max) - Peak, 380V 200 W
Breakdown Voltage 750 V
Auto-Restart & Overvoltage Response Auto-restart
Auto-Restart Threshold OL
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Input Under-voltage Threshold 180
IC Package InSOP-24D
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Voltage - Output (Min) 3 V
Voltage - Output (Max) 24 V
PowiGaN? Yes
Control Scheme Fluxlink
Internal Switch Yes
Cable Drop Compensation X
Product Type IC
Switching Frequency (max) 140 kHz
Topology Flyback
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
MSL Rating 3
Showing 1 - 50 of 57 Products
Back to Top

Product Details

The InnoSwitch™4-CZ family of ICs partners with the ClampZero family of active clamp ICs to dramatically improve the efficiency of flyback power converters, particularly those requiring a compact form-factor. The InnoSwitch4-CZ family incorporates primary and secondary controllers and safety-rated feedback into a single IC.

The combination of InnoSwitch4-CZ with ClampZero greatly reduces system and primary switch losses, allowing for extremely high power densities. InnoSwitch4-CZ also incorporates multiple protection features including output overvoltage and over-current limiting, and over-temperature shutdown. Devices are available that support the common combinations of latching and auto-restart protection mode required by applications such as chargers, adapters, consumer electronics and industrial systems.

Product Highlights

Highly Integrated, Compact Footprint

  • Zero voltage switching (ZVS) flyback controller with driver for ClampZero™ (active clamp IC)
  • Robust 750 V PowiGaN™ primary switch
  • Steady-state switching frequency up to 140 kHz minimizes transformer size
  • Synchronous rectification driver and secondary-side sensing
  • Integrated FluxLink™, HIPOT-isolated, feedback link
  • Exceptional CV/CC accuracy, independent of external components
  • Adjustable accurate output current sense using external sense resistor

EcoSmart – Energy Efficient

  • Up to 95% efficient
  • Less than 30 mW no-load consumption including line sense Advanced Protection / Safety Features
  • Open SR FET-gate detection
  • Fast input line UV/OV protection

Optional Features

  • Variable output voltage, constant current profiles
  • Auto-restart or latching fault response for output OVP/UVP
  • Multiple output UV fault thresholds
  • Latching or hysteretic primary over-temperature protection

Full Safety and Regulatory Compliance

  • Reinforced isolation >4000 VAC
  • 100% production HIPOT testing
  • UL1577 isolation voltage 4000 VAC (max), TUV (EN62368-1), CQC (GB4943.1) safety approved
  • Excellent noise immunity enables designs that achieve class “A” performance criteria for EN61000-4 suite; EN61000-4-2, 4-3 (30 V/m), 4-4, 4-5, 4-6, 4-8 (100 A/m) and 4-9 (1000 A/m)

Green Package

  • Halogen free and RoHS compliant
Back to Top

Resources

Application Notes

Circuit Ideas

Data Sheets

Design Examples

Design Tools

Download ECad Models

General Purpose

Product Selector Guides

Videos

Create Cool and Compact In-Wall USB Chargers with InnoSwitch
PI Webinar - Powering Smart Homes with Sensors, Connectivity & Adaptor-Free USB Charging
Flyback or LLC? Choose the Right Topology for High Efficiency Power Supplies 100 W - 250 W
InnoSwitch4-CZ & ClampZero – Now Support Output Power Up to 220 W
InnoSwitch4-CZ & ClampZero - Enabling A New Class of Mobile Device Chargers
GaN Explained - Part 1 - What is GaN?
InnoSwitch4-CZ & ClampZero - Operational Details

Whitepapers

Related Products

ClampZero in MinSOP-16A Package
ClampZero

© 2024 Power Integrations. All Rights Reserved

粤ICP备2021104505号 粤公网安备44030502008046号
