InnoSwitch3-AQ
CV/CC QR Flyback Switcher IC with Integrated 750 V Silicon, 900 V Silicon, 900 V GaN and 1700 V SiC Switch and FluxLink Feedback for Automotive Applications
Applications
|
Product
|
Data Sheet
|
Power - Output (Max, 30 VDC)
|
Power - Output (Max, 60 VDC)
|
Power - Output (Max, 400 VDC)
|
Power - Output (Max, 800 VDC)
|
Breakdown Voltage
|
PowiGaN?
|
Voltage Input (Min, DC)
|
Voltage Input (Max, DC)
|
Control Scheme
|
Topology
|
IC Package
|
Product Type
|
Control Features
|
Protection Features
|
Auto-Restart & Overvoltage Response
|
Secondary Response
|
Over-Temperature Response
|
Internal Switch
|
Voltage - Output (Min)
|
Voltage - Output (Max)
|
Switching Frequency (min)
|
Switching Frequency (max)
|
Output Profile
|
Temperature - Operating (Min)
|
Temperature - Operating (Max)
|
MSL Rating
|
RDK Available
|
Operating Mode
|
Programmable Features
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
23.0 W
|
Power - Output (Max, 400 VDC)
50.0 W
|
Power - Output (Max, 800 VDC)
50.0 W
|
Breakdown Voltage
1700 V
|
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
1200V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-24D
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
23.0 W
|
Power - Output (Max, 400 VDC)
50.0 W
|
Power - Output (Max, 800 VDC)
50.0 W
|
Breakdown Voltage
1700 V
|
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
1200V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-28G
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
40.0 W
|
Power - Output (Max, 400 VDC)
70.0 W
|
Power - Output (Max, 800 VDC)
70.0 W
|
Breakdown Voltage
1700 V
|
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
1200V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-24D
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Overtemperature, Open SR FET Detection, Input Undervoltage, Output Overvoltage, Output Short Circuit, Output Overload
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
40.0 W
|
Power - Output (Max, 400 VDC)
70.0 W
|
Power - Output (Max, 800 VDC)
70.0 W
|
Breakdown Voltage
1700 V
|
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
1200V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-28G
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
20.0 W
|
Power - Output (Max, 400 VDC)
30.0 W
|
|
Breakdown Voltage
750 V
|
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
520V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-24D
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
40.0 W
|
Power - Output (Max, 400 VDC)
100.0 W
|
|
Breakdown Voltage
900 V
|
PowiGaN?
Yes
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
650V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-24D
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
7.0 W
|
Power - Output (Max, 60 VDC)
14.0 W
|
Power - Output (Max, 400 VDC)
20.0 W
|
|
Breakdown Voltage
900 V
|
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
650V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-24D
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
20.0 W
|
Power - Output (Max, 400 VDC)
55.0 W
|
|
Breakdown Voltage
900 V
|
PowiGaN?
Yes
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
650V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-24D
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|
|
|
Data Sheet
View Data Sheet
|
Power - Output (Max, 30 VDC)
10.0 W
|
Power - Output (Max, 60 VDC)
30.0 W
|
Power - Output (Max, 400 VDC)
85.0 W
|
|
Breakdown Voltage
900 V
|
PowiGaN?
Yes
|
Voltage Input (Min, DC)
40V
|
Voltage Input (Max, DC)
650V
|
Control Scheme
Fluxlink
|
Topology
Flyback
|
IC Package
InSOP-24D
|
Product Type
IC
|
Control Features
Adjustable Current & Voltage, Synchronous Rectification, Frequency Jittering, Soft Start, Auto-Restart/Latching Fault Response
|
Protection Features
Input Undervoltage, Open SR FET Detection, Output Overload, Output Overvoltage, Output Short Circuit, Overtemperature
|
Auto-Restart & Overvoltage Response
Auto-restart, Latch Off
|
Secondary Response
Auto-restart, Latch Off
|
Over-Temperature Response
Hysteretic
|
Internal Switch
Yes
|
Voltage - Output (Min)
5 V
|
Voltage - Output (Max)
24 V
|
Switching Frequency (min)
25 kHz
|
Switching Frequency (max)
95 kHz
|
Output Profile
CV
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
RDK Available
|
Operating Mode
Quasi-Resonant
|
Programmable Features
Switching Frequency
|

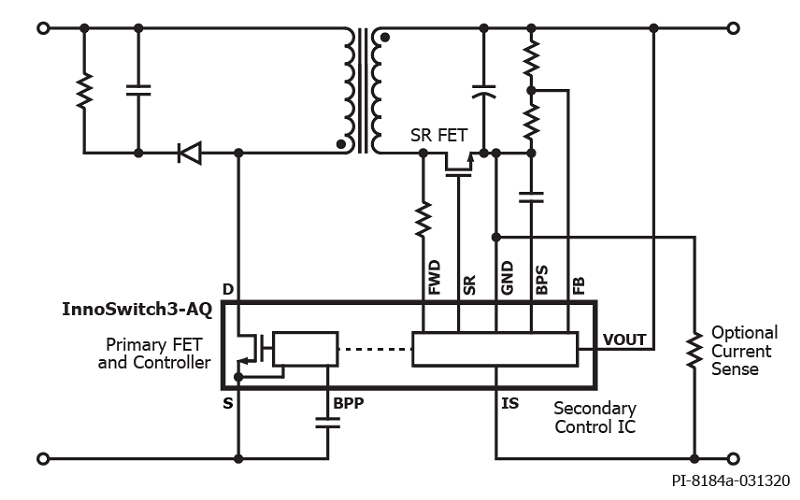

Product Details
The InnoSwitch3-AQ family of ICs dramatically simplifies the design and manufacture of flyback power converters, particularly those requiring high efficiency and/or compact size. The InnoSwitch3-AQ family combines primary and secondary controllers and safety-rated feedback into a single IC allowing accurate output voltage regulation even with wide input voltage range of 30 VDC to 1000 VDC.
InnoSwitch3-AQ family devices incorporate multiple protection features including line over and undervoltage protection, output overvoltage and over-current limiting, and over-temperature shutdown for automotive applications. Device start-up from 30 V makes it ideal for functional safety critical emergency power supplies.
Product Highlights
Highly Integrated, Compact Footprint
- AEC-Q100 qualified
- Up to 95% efficiency across full load range
- Incorporates a multi-mode Quasi-Resonant (QR) / CCM flyback controller, 750 V, 900 V or 1700 V switch and secondary-side sensing
- Integrated FluxLink, HIPOT-isolated, feedback link
- Wide input voltage 30 V to >1000 V
EcoSmart – Energy Efficient
- Less than 15 mW no-load including line sense
- Easily meets all global energy efficiency regulations
- Low heat dissipation
Advanced Protection / Safety Features
- Auto-restart fault response for output overvoltage and over-current
- Accurate programmable output over-current threshold
- Programmable input undervoltage
Full Safety and Regulatory Compliance
- Fab, assembly and test site are IATF16949 certified
- Reinforced isolation per IEC60664-1
- Withstand isolation voltage >4000 VRMS
- 100% production HIPOT testing
- UL1577 isolation voltage 4000 VAC (max), TUV (EN62368), CQC (GB4943.1)
- EN IEC 60747-17 (VDE 0884-17) approved
- Excellent noise immunity enables designs that achieve class “A” performance criteria for EN61000-4 suite; EN61000-4-2, 4-3 (30 V/m), 4-4, 4-5, 4-6, 4-8 (100 A/m) and 4-9 (1000 A/m), FMC1278 (RI-115)
Green Package
- Halogen free and RoHS compliant
Applications
- Power supplies for automotive subsystems such as traction inverter emergency power supply (EPS), high-voltage to low-voltage DC to DC converters (APM), battery management system and on-board charger
