InnoSwitch-CE

Off-Line CV/CC Flyback Switcher IC with Integrated 650 V MOSFET

This is an active product with a newer version available.
Suggested Alternative: InnoSwitch3-CE
Applications

Product Details

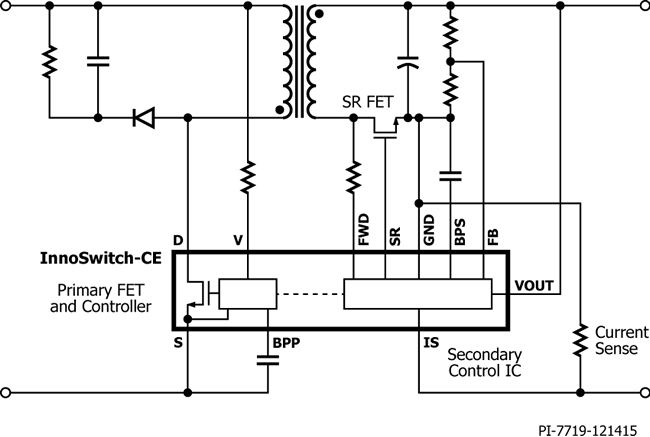

The InnoSwitch™-CE family of ICs dramatically simplify the development and manufacturing of low-voltage, high current power supplies, particularly those in compact enclosures or with high efficiency requirements. The InnoSwitch-CE architecture is revolutionary in that the devices incorporate both primary and secondary controllers, with sense elements and a safety-rated feedback mechanism into a single IC. Close component proximity and innovative use of the integrated communication link permit accurate control of both a secondary-side synchronous rectification MOSFET and optimization of primary-side MOSFET switching. This improves system reliability, maximizes efficiency across the power range from full load to low-power standby.

Product Highlights

Highly Integrated, Compact Footprint

  • Incorporates flyback controller, 650 V MOSFET, secondary-side sensing and synchronous rectification driver
  • FluxLink™ integrated, HIPOT-isolated, feedback link
  • Exceptional CV accuracy, tolerant of transformer and board component variances
  • Adjustable accurate output current

EcoSmart™– Energy Efficient

  • <10 mW no-load at 230 VAC when supplied by transformer bias winding
  • Easily meets all global energy efficiency regulations Advanced Protection / Safety Features
  • Primary sensed output OVP
  • Secondary sensed output overshoot clamp
  • Secondary sensed output OCP to zero output voltage
  • Hysteretic thermal shutdown
  • Input voltage monitor with accurate brown-in/brown-out and overvoltage protection

Full Safety and Regulatory Compliance

  • 100% production HIPOT compliance testing equivalent to 6 kV DC/1 sec
  • Reinforced insulation
  • Isolation voltage >3,500 VAC
  • UL1577 and TUV (EN60950, EN62368) safety approved
  • EN61000-4-8 (100 A/m) and EN61000-4-9 (1000 A/m) compliant Green Package
  • Halogen free and RoHS compliant Applications
  • High current charger and adapters for mobile devices
  • Consumer electronics − set top boxes, networking, gaming, LED
