Product
|
Data Sheet
|
Output Power (Max) - Open Frame, 230V
|
Output Power (Max) - Open Frame, Univ
|
Output Configuration
|
Dimming Interface
|
Breakdown Voltage
|
IC Package
|
VLED (Max)
|
SR MOSFET Driver
|
Over-Temperature Response
|
Voltage - Input (Min)
|
Voltage - Input (Max)
|
Operating Mode
|
Topology
|
Product Type
|
Control Scheme
|
Switching Frequency (max)
|
Protection Features
|
Auto-Restart & Overvoltage Response
|
Temperature - Operating (Min)
|
Temperature - Operating (Max)
|
MSL Rating
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Data Sheet
View Data Sheet
|
|
|
Output Configuration
4 LED Strings
|
|
|
IC Package
SO-16
|
VLED (Max)
175 V
|
|
|
|
|
|
|
Product Type
IC
|
|
|
|
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Open Frame, 230V
25.0 W
|
Output Power (Max) - Open Frame, Univ
22.0 W
|
Output Configuration
1 CV, 4 LED String with IML204DG
|
Dimming Interface
Analog, PWM
|
Breakdown Voltage
650 V
|
IC Package
InSOP-24D
|
VLED (Max)
60 V
|
SR MOSFET Driver
Yes
|
Over-Temperature Response
Auto-restart, Hysteretic, Latch Off
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
Operating Mode
Quasi-Resonant, Zero Voltage Switching
|
Topology
Flyback
|
Product Type
IC
|
Control Scheme
Fluxlink
|
Switching Frequency (max)
100 kHz
|
Protection Features
Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
|
Auto-Restart & Overvoltage Response
Auto-restart
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Open Frame, 230V
25.0 W
|
Output Power (Max) - Open Frame, Univ
22.0 W
|
Output Configuration
1 CV, 1 LED String
|
Dimming Interface
Analog, PWM
|
Breakdown Voltage
650 V
|
IC Package
InSOP-24D
|
VLED (Max)
60 V
|
SR MOSFET Driver
Yes
|
Over-Temperature Response
Auto-restart, Hysteretic, Latch Off
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
Operating Mode
Quasi-Resonant, Zero Voltage Switching
|
Topology
Flyback
|
Product Type
IC
|
Control Scheme
Fluxlink
|
Switching Frequency (max)
100 kHz
|
Protection Features
Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
|
Auto-Restart & Overvoltage Response
Auto-restart
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Open Frame, 230V
35.0 W
|
Output Power (Max) - Open Frame, Univ
27.0 W
|
Output Configuration
1 CV, 4 LED String with IML204DG
|
Dimming Interface
Analog, PWM
|
Breakdown Voltage
650 V
|
IC Package
InSOP-24D
|
VLED (Max)
60 V
|
SR MOSFET Driver
Yes
|
Over-Temperature Response
Auto-restart, Hysteretic, Latch Off
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
Operating Mode
Quasi-Resonant, Zero Voltage Switching
|
Topology
Flyback
|
Product Type
IC
|
Control Scheme
Fluxlink
|
Switching Frequency (max)
100 kHz
|
Protection Features
Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
|
Auto-Restart & Overvoltage Response
Auto-restart
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
|
|
|
Data Sheet
View Data Sheet
|
Output Power (Max) - Open Frame, 230V
35.0 W
|
Output Power (Max) - Open Frame, Univ
27.0 W
|
Output Configuration
1 CV, 1 LED String
|
Dimming Interface
Analog, PWM
|
Breakdown Voltage
650 V
|
IC Package
InSOP-24D
|
VLED (Max)
60 V
|
SR MOSFET Driver
Yes
|
Over-Temperature Response
Auto-restart, Hysteretic, Latch Off
|
Voltage - Input (Min)
90 V
|
Voltage - Input (Max)
265 V
|
Operating Mode
Quasi-Resonant, Zero Voltage Switching
|
Topology
Flyback
|
Product Type
IC
|
Control Scheme
Fluxlink
|
Switching Frequency (max)
100 kHz
|
Protection Features
Overtemperature, Output Overvoltage, Output Short Circuit, Output Open Loop, Output Overload
|
Auto-Restart & Overvoltage Response
Auto-restart
|
Temperature - Operating (Min)
-40 °C
|
Temperature - Operating (Max)
150 °C
|
MSL Rating
3
|
|
Product Details

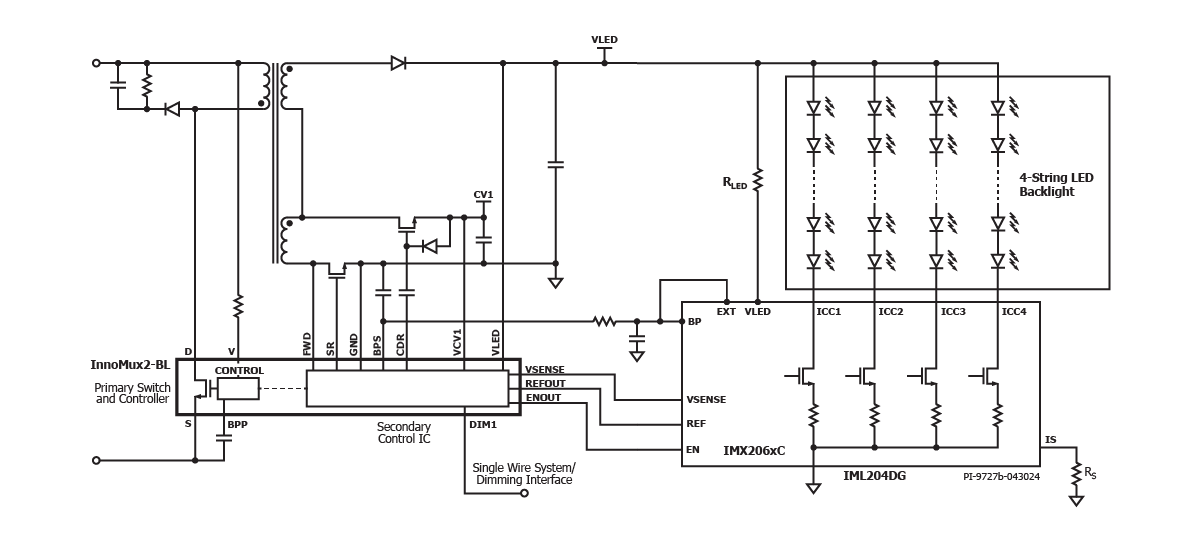

The InnoMux2-BL IC provides accurate, isolated, offline CV and CC regulation using a single transformer, dramatically reducing power sub-system component count and board area. The single-stage, multiple output, architecture eliminates DC/DC post regulators, providing regulated outputs.
InnoMux-2 IC-based designs have low BOM count and small size. The family incorporates both primary and secondary side
controllers, with protection, sense elements and a safety-rated feedback mechanism (FluxLink) into a single IC. The InnoMux-2 IC also includes a multi-mode LED backlight controller making it ideal for monitors, TVs and appliances with lighting or display requirements, and partners with the IML204DG to implement up to four CC strings for high-end displays.
InnoMux2-BL contains enhanced features for maximizing conversion efficiency including quasi-resonant switching in DCM operation, accurate SR control and minimum-threshold-regulation for the LED driver.
Product Highlights
Highly Integrated, Compact Footprint
- Accurate constant voltage (CV) and constant current (CC) outputs using a single transformer, eliminating multiple post regulators
- Pairs with IML204DG to implement up to 4 accurate CC channels
- Incorporates a multi-mode Quasi-Resonant Discontinuous Conduction Mode (DCM) and Continuous Conduction (CCM) flyback
controller with high-voltage switch, secondary-side control and synchronous rectification driver - Integrated FluxLink™ feedback link eliminates optocouplers
- Excellent transient response: <±5% CV with 0%-100% load step
- CV output up to 24 V and up to 150 V for CC LED drive output
EcoSmart™ – Energy Efficient
- Design readily meets TV and monitor energy efficiency regulations
- Proprietary switching algorithm ensures high efficiency across load
- Low dissipation allows PCB cooling – no heat sinks required
Advanced Protection / Safety Features
- Primary sensed output OVP
- Open SR-FET gate detection
- Hysteretic thermal shutdown
- Input voltage monitor with accurate brown-in/brown-out and overvoltage protection
- Overload protection for each output
- LED short / open protection
Full Safety and Regulatory Compliance
- Reinforced isolation
- Isolation voltage >4000 VAC
- 100% production HIPOT tested
- UL1577 and TUV (EN62368) safety testing in progress
- Enables designs required to meet class A performance criteria for EN61000-4 suite of test standards, including EN61000-4-2,
4-3 (30 V/m), 4-4, 4-5, 4-6, 4-8 (100 A/m) and 4-9 (1000 A/m)
Green Package
- Halogen free and RoHS compliant
