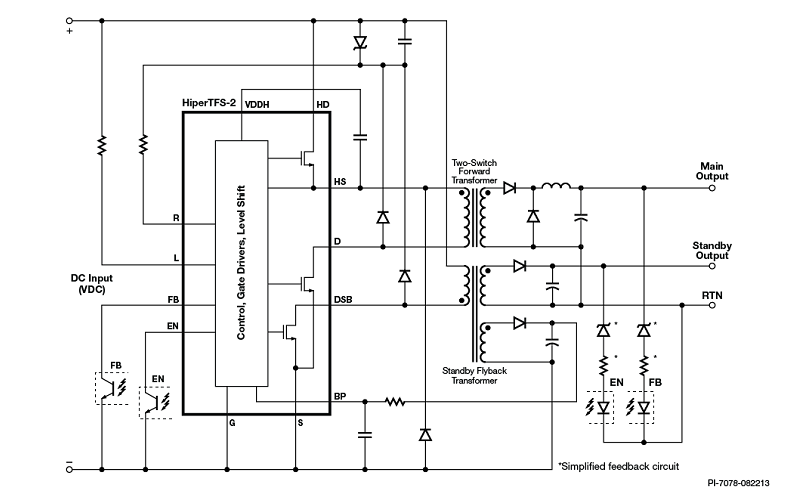

Figure 1. Schematic of Two-Switch Forward and Flyback Converter.
HiperPFS-2 in eSIP-16D Package
Figure 1. Schematic of Two-Switch Forward and Flyback Converter.
HiperPFS-2 in eSIP-16D Package

HiperTFS-2

Combined Two-Switch Forward and Flyback Power Supply Controllers with Integrated High-Voltage MOSFETs

Applications
Start Designing
Filters Filter Products
Hide Filters
Filter Products
Showing 1 - 8 of 8 Products
Product Parts Table
Product
Data Sheet
Output Power (Max) - Continuous, 380V
Output Power (Max) - Peak, 380V
Output Power (Max) - Flyback, Univ
Topology
Protection Features
Breakdown Voltage
Control Features
Auto-Restart & Overvoltage Response
Switching Frequency (max)
Voltage - Input (Min)
Voltage - Input (Max)
IC Package
Mounting Type
Product Type
Temperature - Operating (Max)
Temperature - Operating (Min)
Over-Temperature Response
Secondary Response
HiperPFS-2 in eSIP-16D Package

TFS7701H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 148 W
Output Power (Max) - Peak, 380V 187 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
HiperPFS-2 in eSIP-16D Package

TFS7702H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 190 W
Output Power (Max) - Peak, 380V 297 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
HiperPFS-2 in eSIP-16D Package

TFS7703H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 229 W
Output Power (Max) - Peak, 380V 375 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
HiperPFS-2 in eSIP-16D Package

TFS7704H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 251 W
Output Power (Max) - Peak, 380V 419 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
HiperPFS-2 in eSIP-16D Package

TFS7705H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 269 W
Output Power (Max) - Peak, 380V 466 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
HiperPFS-2 in eSIP-16D Package

TFS7706H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 298 W
Output Power (Max) - Peak, 380V 513 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
HiperPFS-2 in eSIP-16D Package

TFS7707H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 322 W
Output Power (Max) - Peak, 380V 553 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
HiperPFS-2 in eSIP-16D Package

TFS7708H

View Details
Data Sheet View Data Sheet
Output Power (Max) - Continuous, 380V 343 W
Output Power (Max) - Peak, 380V 586 W
Output Power (Max) - Flyback, Univ 20 W
Topology Flyback, 2-Switch Forward + Flyback
Protection Features Input Overvoltage, Input Undervoltage, Line-compensated Overload, Output Overload, Output Overvoltage, Output Short Circuit, Output Undervoltage, Overtemperature, Remote Shutdown
Breakdown Voltage 725 V
Control Features Selectable Current Limit, Frequency Jittering, Auto-Restart/Latching Fault Response, On/Off Control
Auto-Restart & Overvoltage Response Auto-restart, Latch Off
Switching Frequency (max) 132 kHz
Voltage - Input (Min) 90 V
Voltage - Input (Max) 265 V
IC Package eSIP-16F
Mounting Type Through Hole
Product Type IC
Temperature - Operating (Max) 150 °C
Temperature - Operating (Min) -40 °C
Over-Temperature Response Hysteretic
Secondary Response Auto-restart
Showing 1 - 8 of 8 Products
Back to Top

Product Details

Description

The HiperTFS-2 devices incorporate a high-power two-switch-forward converter and a mid-power flyback (standby) converter into a single, low-profile eSIP™ power package. The single chip solution provides the controllers for the two-switch-forward and flyback converters, high- and low-side drivers, all three of the high-voltage power MOSFETs, and eliminates the converter’s need for costly external pulse transformers. The device is ideal for high power applications that require both a main power converter (two-switch forward) up to 586 W peak, and a standby converter (flyback) up to 20 W. The devices operate over a wide input voltage range, and can be used following a power-factor correction stage such as HiperPFS.



New with HiperTFS-2

  • Improved assembly flow – changed from 3 row package to 2 row package
  • Up to 40% more peak power – easily meeting the next generation Intel CPU peak power requirement
  • Self biased high-side driver – eliminating bias winding
  • Main convertor now offers 66kHz/132kHz options



Product Highlights

Key Benefits

  • Single chip solution for two-switch forward main and flyback standby
  • High integration allows smaller form factor and higher power density designs, with reduced component count
  • Incorporates control, gate drivers, and three power MOSFETs
  • Level shift technology eliminates need for pulse transformer
  • Protection features include: UV, OV, OTP, OVP, standby OPC, SCP, and ILIMIT
  • Transformer reset control, prevents saturation under all conditions
  • Main duty cycle operation above 50% for reduced rms currents and lower output diode voltage rating
  • Less than 10% variation in standby overload power over input voltage range

Applications

  • PC (80 PLUS Bronze and 80 PLUS Silver)
  • Printer
  • LCD TV
  • Video game consoles
  • High power adaptors
  • Industrial & appliance
