HiperPFS
High Power PFC Controller With Integrated High-Voltage MOSFET
This product is in End-of-Life status and is no longer available.
Applications
Product Details
Product Discontinuation Information
Production of HiperPFS™ will end after June 10, 2020. Please contact your local PI sales office for samples to help migration to the replacement products.
Suggested Alternative Parts:
| Part Number | Alternative Part | Part Number | Alternative Part |
| PFS704EG | PFS7623H/L | PFS723EG | PFS7633H |
| PFS706EG | PFS7624H/L | PFS724EG | PFS7634H |
| PFS708EG | PFS7625H/L | PFS725EG | PFS7635H |
| PFS710EG | PFS7626H/L | PFS726EG | PFS7636H |
| PFS712EG | PFS7627H/L | PFS727EG | PFS7637H |
| PFS713EG | PFS7628H/L | PFS728EG | PFS7638H |
| PFS714EG | PFS7629H/L | PFS729EG | PFS7639H |
| PFS716EG | PFS7629H/L |
Description

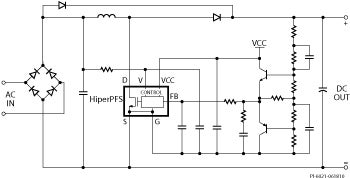

The HiperPFS device family members incorporate a continuous conduction mode (CCM) boost PFC controller, gate driver, and high voltage power MOSFET in a single, low-profile eSIP™ power package that is able to provide near unity input power factor. The HiperPFS devices eliminate the PFC converter's need for external current sense resistors, the power loss associated with those components, and leverages an innovative control technique that adjusts the switching frequency over output load, input line voltage, and even input line cycle. This control technique is designed to maximize efficiency over the entire load range of the converter, particularly at light loads. Additionally, this control technique significantly minimizes the EMI filtering requirements due to its wide-bandwidth spread spectrum effect. HiperPFS includes Power Integrations' standard set of comprehensive protection features, such as integrated soft-start, UV, OV, brown-in/out, and hysteretic thermal shutdown. HiperPFS also provides cycle-by-cycle current limit for the power MOSFET, power limiting of the output for over-load protection, and pin-to-pin short-circuit protection.
Product Highlights
Key Benefits
- Single chip solution for boost power factor correction (PFC)
- EN61000-3-2 Class C & D compliance
- High light load efficiency at 10% and 20% load
- >95% efficiency from 10% load to full load
- <130 mW no-load consumption at 230 VAC with output in regulation
- <50 mW no-load consumption at 230 VAC in remote off state
- Frequency adjusted over line voltage, and line cycle
- Spread-spectrum across >60 kHz window to simplify EMI filtering requirements
- Lower boost inductance
- Provides up to 1 kW peak output power
- >1 kW peak power delivery in power limit voltage regulation mode
- High integration allows smaller form factor, higher power density designs
- Incorporates control, gate driver, and HV power MOSFET
- Internal current sense reduces component count and system losses
- Protection features include: UV, OV, OTP, brown-in/out, cycle-by-cycle current limit, & power limiting for over-load protection
- Halogen free and RoHS compliant
Applications
- PC
- Printer
- LCD TV
- Video game consoles
- High power adaptors
- High power LED lighting
- Industrial & appliance
- Generic PFC converters
