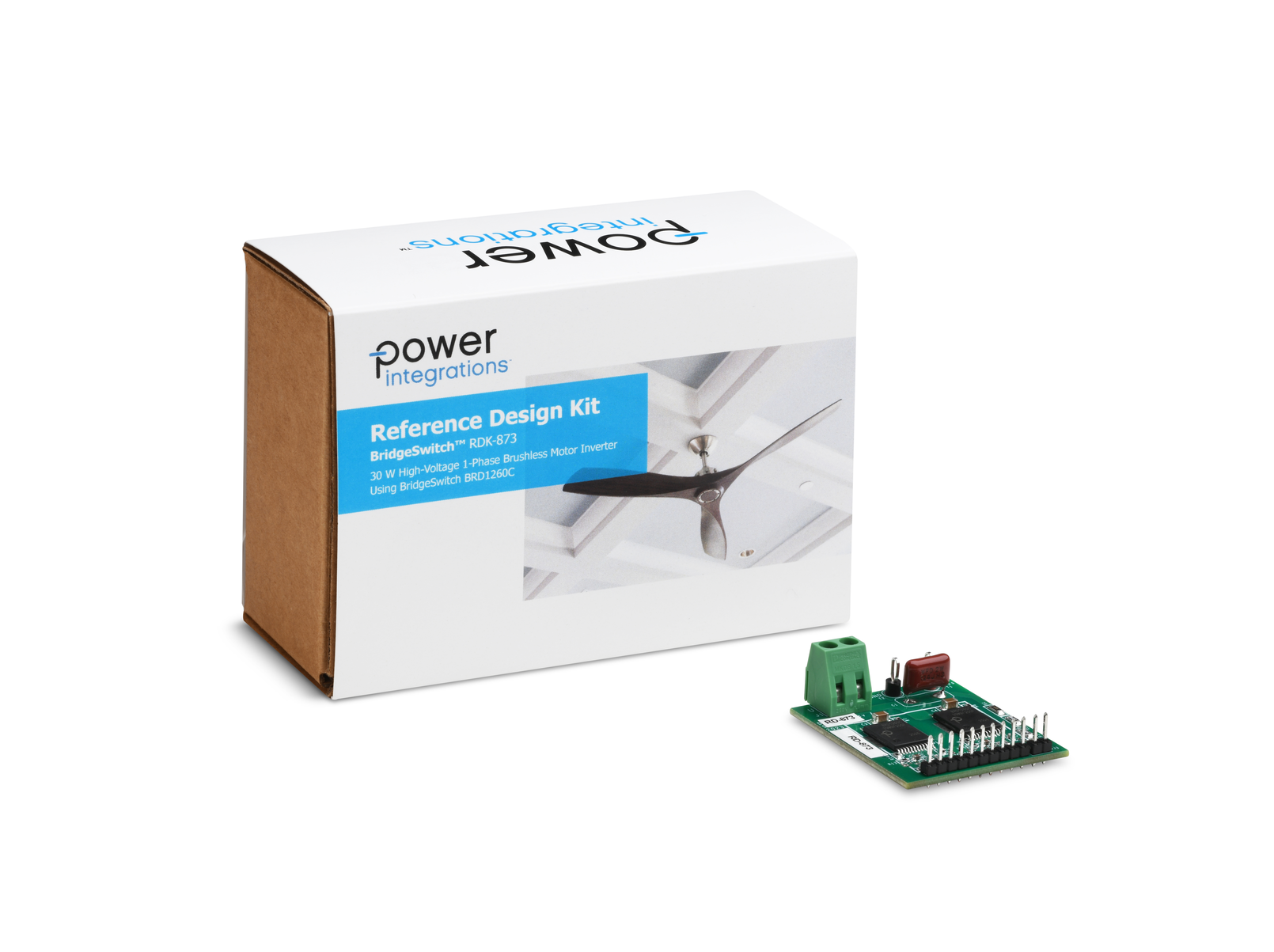

RDK-873 - 30 W Single-Phase Inverter Using BridgeSwitch Motor Driver Using BridgeSwitch

30 W Single-Phase Inverter Using BridgeSwitch Motor Driver

Applications
Design Document
Download PDF View PDF

See other distributors

Back to Top

Specifications

Associated Product Numbers BRD1260C
Design Type Reference Design Reports (RDR)
Vout 1 136.00 V
Vin (min) 270
Vin (max) 365
P (NoLoad) 180.00 mW
Efficiency 94.97%
Number of outputs 1
Output Power 30.00 W
Associated Parts BRD1260C
Gerber File rdr-873_gerber.zip
