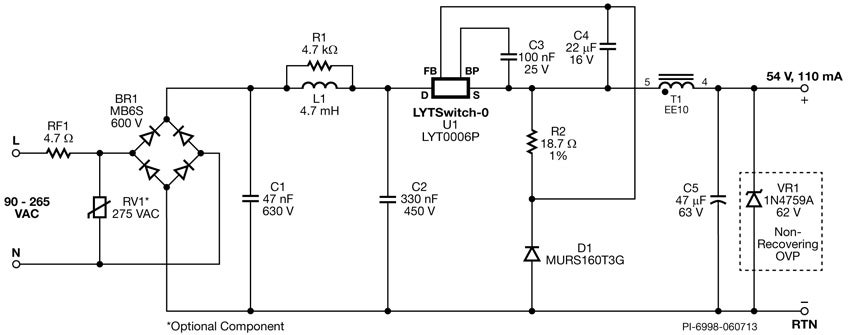

RDK-355 - 6 W Non-Dimmable, Non-Isolated Buck LED Driver Using LYTSwitch-0
6 W Non-Dimmable, Non-Isolated Buck LED Driver Output: 6 W (54 V, 110 mA), 90-265 VAC
Applications
Specifications
Associated Product Numbers
LYT0006P
Design Type
Reference Design Reports (RDR)
Topology
Buck
RoHS?
Yes
Vout 1
54.00 V
Vin (min)
90
Vin (max)
265
TRIAC dimmable?
No
CV/CC
CC
Efficiency
91.00%
Isolated?
No
Number of outputs
1
Output Power
6.00 W
PFC?
Yes
Associated Parts
LYT0006
Gerber File
rd355gerber.zip
