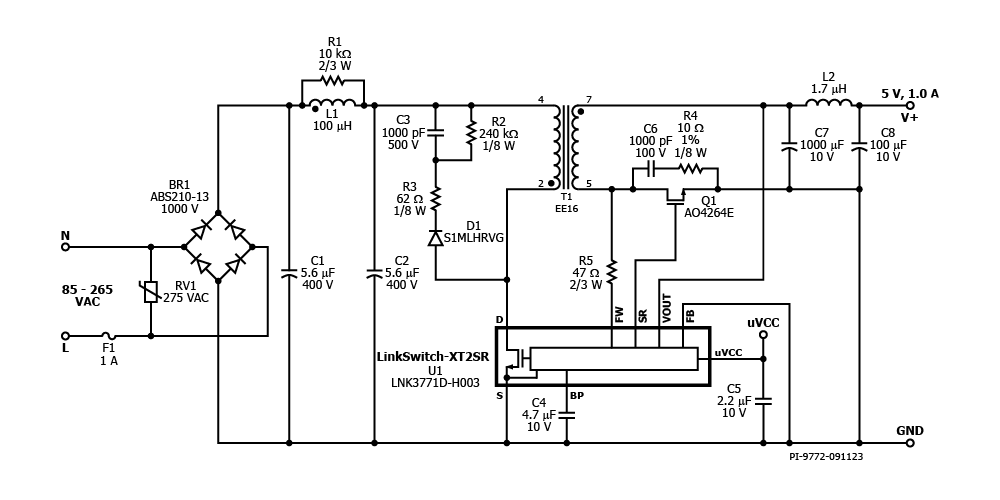

DER-963 - 5 W Non-Isolated Flyback Small Appliance Power Supply Using LinkSwitch-XT2SR
5 W non-isolated flyback power supply for small appliances, using LinkSwitch-XT2SR (LNK3771D-H003)
- 725 V maximum drian voltage
- Input range: 85 - 265 VAC
- Output: 5 V, 1 A
- Lowest possible component count
- Synchronous rectifier MOSFET driver and integrated 3.3 V LDO (uVCC)
- >87% efficiency at full load
- 5 mW no-load input power at 265 VAC
