DER-610 - 10 W USB Charger

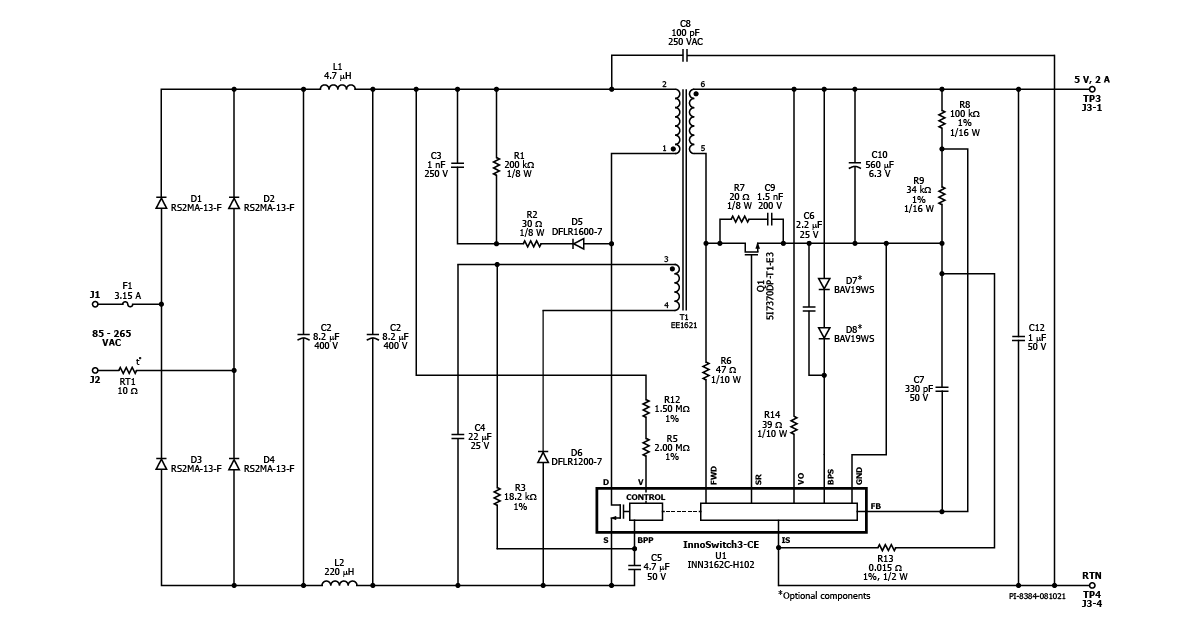

10 W USB Charger Using InnoSwitch3-CE INN3162C-H102

Notify Me of Updates

Design Type Design Example Reports (DER)

Topology Flyback

Vout 1 5.00 V

Vin (min) 85

Vin (max) 265

P (NoLoad) 13.00 mW

CV/CC CV/CC

Efficiency 81.00%

Isolated? Yes

Number of outputs 1

Output Power 10.00 W

OVP? Yes

PFC? No

Associated Parts INN3162C-H102

Gerber File rd610gerber.zip
