TOPSwitch-HX

採用增強的 EcoSmart 技術，具有進階功能集和更大的功率範圍的整合型離線式切換開關

應用

開始設計

適用產品
詳情
資源

Product Parts Table
產品	產品	產品規格型錄	輸出功率 (最大) - 封閉式, 230V	輸出功率 (最大) - 敞開式, 230V	IC封裝	擊穿電壓	輸出功率 (最大) - 封閉式, 通用	輸出功率 (最大) - 敞開式, 通用	開關頻率 (最大)	控制功能	保護功能	自動重啟閾值	安裝類型	產品類別	輸入電壓 (最大)	輸入電壓 (最小)	運作溫度 (最大)	運作溫度 (最小)	控制方式	內部開關	自動重啟和過壓反應	過熱反應	拓撲結構	次級回應
TOP252EG 查看詳情	TOP252EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 10.0 W	Output Power (Max) - Open Frame, 230V 21.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 6.0 W	Output Power (Max) - Open Frame, Univ 13.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP252EN 查看詳情	TOP252EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 10.0 W	Output Power (Max) - Open Frame, 230V 21.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 6.0 W	Output Power (Max) - Open Frame, Univ 13.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP252GN 查看詳情	TOP252GN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 9.0 W	Output Power (Max) - Open Frame, 230V 15.0 W	IC Package SMD-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 6.0 W	Output Power (Max) - Open Frame, Univ 10.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 表面安裝	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP252PN 查看詳情	TOP252PN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 9.0 W	Output Power (Max) - Open Frame, 230V 15.0 W	IC Package DIP-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 6.0 W	Output Power (Max) - Open Frame, Univ 10.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP253EG 查看詳情	TOP253EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 21.0 W	Output Power (Max) - Open Frame, 230V 43.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 13.0 W	Output Power (Max) - Open Frame, Univ 29.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP253EN 查看詳情	TOP253EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 21.0 W	Output Power (Max) - Open Frame, 230V 43.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 13.0 W	Output Power (Max) - Open Frame, Univ 29.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP253GN 查看詳情	TOP253GN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 15.0 W	Output Power (Max) - Open Frame, 230V 25.0 W	IC Package SMD-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 9.0 W	Output Power (Max) - Open Frame, Univ 15.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 表面安裝	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP253PN 查看詳情	TOP253PN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 15.0 W	Output Power (Max) - Open Frame, 230V 25.0 W	IC Package DIP-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 9.0 W	Output Power (Max) - Open Frame, Univ 15.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP254EG 查看詳情	TOP254EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 30.0 W	Output Power (Max) - Open Frame, 230V 62.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 20.0 W	Output Power (Max) - Open Frame, Univ 43.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP254EN 查看詳情	TOP254EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 30.0 W	Output Power (Max) - Open Frame, 230V 62.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 20.0 W	Output Power (Max) - Open Frame, Univ 43.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP254GN 查看詳情	TOP254GN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 16.0 W	Output Power (Max) - Open Frame, 230V 28.0 W	IC Package SMD-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 11.0 W	Output Power (Max) - Open Frame, Univ 20.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 表面安裝	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP254PN 查看詳情	TOP254PN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 16.0 W	Output Power (Max) - Open Frame, 230V 28.0 W	IC Package DIP-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 11.0 W	Output Power (Max) - Open Frame, Univ 20.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP254YN 查看詳情	TOP254YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 30.0 W	Output Power (Max) - Open Frame, 230V 62.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 20.0 W	Output Power (Max) - Open Frame, Univ 43.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP255EG 查看詳情	TOP255EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 40.0 W	Output Power (Max) - Open Frame, 230V 81.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 26.0 W	Output Power (Max) - Open Frame, Univ 57.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP255EN 查看詳情	TOP255EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 40.0 W	Output Power (Max) - Open Frame, 230V 81.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 26.0 W	Output Power (Max) - Open Frame, Univ 57.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP255GN 查看詳情	TOP255GN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 19.0 W	Output Power (Max) - Open Frame, 230V 30.0 W	IC Package SMD-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 13.0 W	Output Power (Max) - Open Frame, Univ 22.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 表面安裝	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP255PN 查看詳情	TOP255PN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 19.0 W	Output Power (Max) - Open Frame, 230V 30.0 W	IC Package DIP-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 13.0 W	Output Power (Max) - Open Frame, Univ 22.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP255YN 查看詳情	TOP255YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 40.0 W	Output Power (Max) - Open Frame, 230V 81.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 26.0 W	Output Power (Max) - Open Frame, Univ 57.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP256EG 查看詳情	TOP256EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 60.0 W	Output Power (Max) - Open Frame, 230V 119.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 40.0 W	Output Power (Max) - Open Frame, Univ 86.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP256EN 查看詳情	TOP256EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 60.0 W	Output Power (Max) - Open Frame, 230V 119.0 W	IC Package eSIP-7F	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 40.0 W	Output Power (Max) - Open Frame, Univ 86.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP256GN 查看詳情	TOP256GN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 21.0 W	Output Power (Max) - Open Frame, 230V 34.0 W	IC Package SMD-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 15.0 W	Output Power (Max) - Open Frame, Univ 26.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 表面安裝	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP256PN 查看詳情	TOP256PN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 21.0 W	Output Power (Max) - Open Frame, 230V 34.0 W	IC Package DIP-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 15.0 W	Output Power (Max) - Open Frame, Univ 26.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP256YN 查看詳情	TOP256YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 60.0 W	Output Power (Max) - Open Frame, 230V 119.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 40.0 W	Output Power (Max) - Open Frame, Univ 86.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP257EG 查看詳情	TOP257EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 85.0 W	Output Power (Max) - Open Frame, 230V 157.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 55.0 W	Output Power (Max) - Open Frame, Univ 119.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP257EN 查看詳情	TOP257EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 85.0 W	Output Power (Max) - Open Frame, 230V 157.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 55.0 W	Output Power (Max) - Open Frame, Univ 119.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP257GN 查看詳情	TOP257GN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 25.0 W	Output Power (Max) - Open Frame, 230V 41.0 W	IC Package SMD-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 19.0 W	Output Power (Max) - Open Frame, Univ 30.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 表面安裝	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP257PN 查看詳情	TOP257PN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 25.0 W	Output Power (Max) - Open Frame, 230V 41.0 W	IC Package DIP-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 19.0 W	Output Power (Max) - Open Frame, Univ 30.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP257YN 查看詳情	TOP257YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 85.0 W	Output Power (Max) - Open Frame, 230V 157.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 55.0 W	Output Power (Max) - Open Frame, Univ 119.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP258EG 查看詳情	TOP258EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 105.0 W	Output Power (Max) - Open Frame, 230V 195.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 70.0 W	Output Power (Max) - Open Frame, Univ 148.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP258EN 查看詳情	TOP258EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 105.0 W	Output Power (Max) - Open Frame, 230V 195.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 70.0 W	Output Power (Max) - Open Frame, Univ 148.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP258GN 查看詳情	TOP258GN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 29.0 W	Output Power (Max) - Open Frame, 230V 48.0 W	IC Package SMD-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 22.0 W	Output Power (Max) - Open Frame, Univ 35.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 表面安裝	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP258PN 查看詳情	TOP258PN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 29.0 W	Output Power (Max) - Open Frame, 230V 48.0 W	IC Package DIP-8C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 22.0 W	Output Power (Max) - Open Frame, Univ 35.0 W	Switching Frequency (max) 66 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP258YN 查看詳情	TOP258YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 105.0 W	Output Power (Max) - Open Frame, 230V 195.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 70.0 W	Output Power (Max) - Open Frame, Univ 148.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP259EG 查看詳情	TOP259EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 128.0 W	Output Power (Max) - Open Frame, 230V 238.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 80.0 W	Output Power (Max) - Open Frame, Univ 171.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP259EN 查看詳情	TOP259EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 128.0 W	Output Power (Max) - Open Frame, 230V 238.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 80.0 W	Output Power (Max) - Open Frame, Univ 171.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP259YN 查看詳情	TOP259YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 128.0 W	Output Power (Max) - Open Frame, 230V 238.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 80.0 W	Output Power (Max) - Open Frame, Univ 171.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP260EG 查看詳情	TOP260EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 147.0 W	Output Power (Max) - Open Frame, 230V 275.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 93.0 W	Output Power (Max) - Open Frame, Univ 200.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP260EN 查看詳情	TOP260EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 147.0 W	Output Power (Max) - Open Frame, 230V 275.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 93.0 W	Output Power (Max) - Open Frame, Univ 200.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP260YN 查看詳情	TOP260YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 147.0 W	Output Power (Max) - Open Frame, 230V 275.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 93.0 W	Output Power (Max) - Open Frame, Univ 200.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP261EG 查看詳情	TOP261EG 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 177.0 W	Output Power (Max) - Open Frame, 230V 333.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 118.0 W	Output Power (Max) - Open Frame, Univ 254.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP261EN 查看詳情	TOP261EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 177.0 W	Output Power (Max) - Open Frame, 230V 333.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 118.0 W	Output Power (Max) - Open Frame, Univ 254.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP261YN 查看詳情	TOP261YN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 177.0 W	Output Power (Max) - Open Frame, 230V 333.0 W	IC Package TO-220-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 118.0 W	Output Power (Max) - Open Frame, Univ 254.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟
TOP262EN 查看詳情	TOP262EN 查看詳情	Data Sheet View Data Sheet	Output Power (Max) - Enclosed, 230V 177.0 W	Output Power (Max) - Open Frame, 230V 333.0 W	IC Package eSIP-7C	Breakdown Voltage 700 V	Output Power (Max) - Enclosed, Univ 118.0 W	Output Power (Max) - Open Frame, Univ 254.0 W	Switching Frequency (max) 132 kHz	Control Features 可選擇電流限制, 頻率抖動, 軟啟動, 自動重啟/鎖定故障響應, 開/關控制	Protection Features 輸出欠壓, 過溫, 輸出過壓, 輸出短路, 輸出開環, 輸出過載, 遠程關閉	Auto-Restart Threshold 5.8	Mounting Type 穿孔	Product Type IC	Voltage - Input (Max) 265 V	Voltage - Input (Min) 85 V	Temperature - Operating (Max) 150 °C	Temperature - Operating (Min) -40 °C	Control Scheme 次級側	Internal Switch Yes	Auto-Restart & Overvoltage Response 自動重啟	Over-Temperature Response 滯回	Topology 返馳式	Secondary Response 自動重啟

回到頂部

產品詳情

說明：

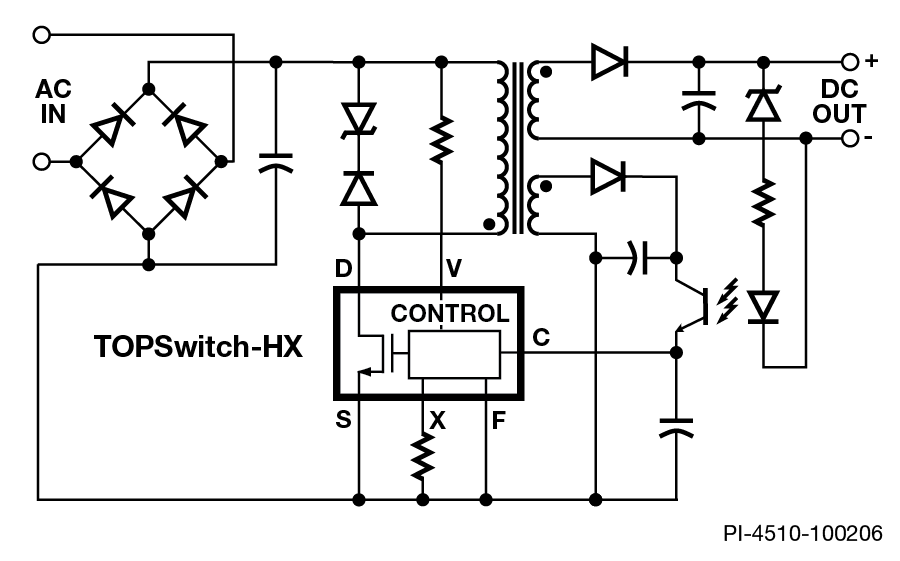

TOPSwitch-HX 將一個 700 V 功率的 MOSFET、高電壓切換式電流源、PWM 控制、振盪器、過熱關機電路、故障保護與其他控制電路整合到一個單晶片裝置中。

系統成本更低、設計彈性更高

無論負載為何，多重模式操作都能讓效率發揮到極致
全新的 eSIP-7C 和 eSIP-7F 封裝是根據 PI 在高功率和高可靠性封裝方面的經驗發展出來的
使用 P、G 或 M 封裝時 35 W 以下應用 (230 VAC 下為 48 W) 不需使用散熱片
使用者可設定輸出過壓保護 (OVP)，透過快速 AC 重設功能進行關機鎖定/非鎖定
線路欠壓 (UV) 偵測，可預防關閉擾動
線路過壓 (OV) 關機可提高線路突波限制
精確的可設定電流限制
針對線路漣波拒斥最佳化線路前饋
132 kHz 頻率 (254Y-258Y 及所有 E 封裝) 可縮小變壓器和電源供應器的尺寸 (針對視訊應用的半頻選項)
嚴格的 I²f 參數公差可降低系統成本
頻率抖動功能可降低 EMI 濾波器成本
散熱片連接至源極，可降低 EMI
改良式自動重新啟動功能，可於短路和開迴路故障狀態下輸出 <3% 的最大功率
精確的遲滯過熱關機功能，不需進行重設，即可自動恢復
完全整合軟啟動功能，可使啟動應力降至最小
加大汲極與所有其他接腳之間的沿面距離，進而提升現場使用的可靠性

EcoSmart – 節能

在整個負載範圍內實現節能
無負載消耗
- 在 230 VAC 時小於 200 mW
在 1 W 輸入時的待機功率
- 在 110 VAC 輸入時輸出 > 600 mW
- 在 265 VAC 輸入時輸出 > 500 mW

eSIP (E) 封裝 (eSIP 封裝資訊)

接面至外殼低熱阻抗 (每瓦 2°C)
當空間狹小時，轉換器 (Adapter) 適合採用較低的高度
簡單的夾扣式散熱片可降低製造成本

應用：

LCD 顯示器
個人電腦
小型伺服器
筆記型電腦轉換器 (Adapter)
機上盒
數位電視
印表機
DVD 播放器和錄放影機
UPS
視訊遊戲
寬頻數據機
行動電話轉換器 (Adapter)
音頻放大器
