2SC0108T
Dual-channel SCALE-2+ driver core, highest integration level ultra-compact, high-quality 8A gate current and 2 x 1 W output power
應用
|
產品
|
產品規格型錄
|
IGBT電壓等級
|
通道數
|
保形塗層?
|
支持的模組種類
|
支持的模組
|
IGBT製造商
|
邏輯輸入電壓
|
保護功能
|
技術
|
接口類型
|
支持的拓撲
|
電源電壓 (典型)
|
閘極導通電壓
|
閘極關斷電壓
|
輸出功率/通道 - 最大
|
閘極峰值電流 (最大)
|
隔離類型
|
隔離技術
|
最大開關頻率
|
時間 - 輸出下降
|
時間 - 輸出上升
|
符合UL
|
驅動模式
|
運作溫度 (最小)
|
運作溫度 (最大)
|
主/外圍
|
模組外殼
|
選項信息
|
並行支持？
|
ROMS
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
650 V
|
Number of Channels
1
|
Conformal Coated?
No
|
|
Supported Module(s)
任何
|
IGBT Manufacturer
ABB, Danfoss, Dynex, Fuji, Hitachi, Infineon, IXYS, Mitsubishi/Powerex, Toshiba
|
|
|
Technology
SCALE-2
|
Interface Type
標準變壓器
|
|
|
|
|
Power - Output/Channel (Max)
1.0 W
|
|
|
|
Max Switching Frequency
50.0 kHz
|
|
|
UL Compliant
認可
|
|
Temperature - Operating (Min)
-40 ℃
|
Temperature - Operating (Max)
85 ℃
|
|
Module Housing
任何
|
|
Paralleling Support?
No
|
ROMS
否
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1200 V
|
Number of Channels
1
|
Conformal Coated?
No
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
高級有源鉗位, 短路, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
|
Options Info
Conformal Coated Version 2SC0108T2D0C-12
|
Paralleling Support?
No
|
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1200 V
|
Number of Channels
1
|
Conformal Coated?
Yes
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
高級有源鉗位, 短路, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
|
|
Paralleling Support?
No
|
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1700 V
|
Number of Channels
1
|
Conformal Coated?
No
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
基本有源鉗位, 短路, 軟關斷, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2+
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
UL Compliant
合規
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
Module Housing
任何
|
Options Info
Conformal Coated Version 2SC0108T2F1C-17
|
Paralleling Support?
No
|
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1700 V
|
Number of Channels
1
|
Conformal Coated?
Yes
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
基本有源鉗位, 短路, 軟關斷, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2+
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
|
|
Paralleling Support?
No
|
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1700 V
|
Number of Channels
1
|
Conformal Coated?
No
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
基本有源鉗位, 短路, 軟關斷, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2+
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
UL Compliant
合規
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
Module Housing
任何
|
Options Info
Conformal Coated Version 2SC0108T2G0C-17
|
Paralleling Support?
No
|
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1700 V
|
Number of Channels
1
|
Conformal Coated?
Yes
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
基本有源鉗位, 短路, 軟關斷, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2+
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
|
|
Paralleling Support?
No
|
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1700 V
|
Number of Channels
1
|
Conformal Coated?
No
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
基本有源鉗位, 短路, 軟關斷, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2+
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
UL Compliant
合規
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
Module Housing
任何
|
Options Info
Conformal Coated Version 2SC0108T2H0C-17
|
Paralleling Support?
No
|
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1700 V
|
Number of Channels
1
|
Conformal Coated?
Yes
|
Supported Module Type
IGBT, N溝道MOSFET
|
|
|
Logic Input Voltage
1
|
Protection Features
基本有源鉗位, 短路, 軟關斷, 欠壓（次級側）, 欠壓（初級側）
|
Technology
SCALE-2+
|
Interface Type
電氣
|
Supported Topologies
兩電平電壓源, 三電平NP鉗位 - 類型1, 三電平NP鉗位 - 類型2, 多電平NP鉗位
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--9.4 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+8 A
|
Isolation Type
加強型
|
Isolation Technology
電隔離
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
15 ns
|
Time - Output Rise
17 ns
|
|
Driving Mode
半橋, 直接獨立
|
|
|
Main/Peripheral
無
|
|
|
Paralleling Support?
No
|
|
產品詳情
2SC0108T is a new SCALE-2 dual-driver core that combines compact design and high reliability with broad applicability. The 2SC0108T drives all usual IGBT modules up to 600 A /1200 V or 450 A / 1700 V. Embedded paralleling allows simple inverter design even at higher power ratings. Multi-level topologies are also supported.
Advantages of the Technology
The 2SC0108T is our most compact driver core available for industrial applications, with a footprint of only 45 x 34.3 mm and profile of 16 mm. The SCALE-2 chipset reduces the component count by up to 80% compared to conventional solutions, thus significantly increasing reliability and reducing costs.

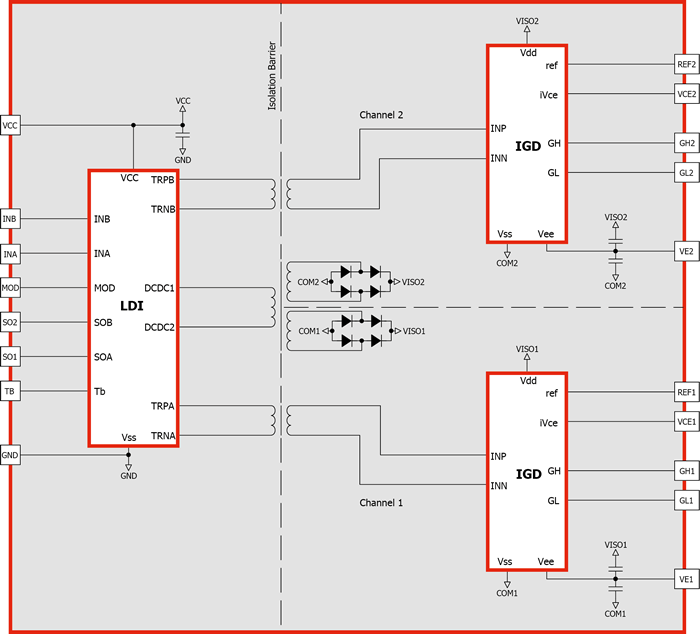

The 2SC0108T combines a complete two-channel driver core with all components required for driving, such as an isolated DC/DC converter, short-circuit protection as well as supply voltage monitoring. Each of the two output channels is electrically isolated from the primary side and the other secondary channel.
An output current of 8 A and 1 W drive power is available per channel, making the 2SC0108T a suitable choice for universal usage in small and medium power applications. The driver provides a gate voltage swing of +15 V / –8 V. The turn-on voltage is regulated to maintain a stable 15 V regardless of the output power level.
Excellent EMC performance enables safe and reliable operation even in demanding industrial applications.
Driving Parallel-Connected IGBTs
The driver allows direct parallel connection of any number of IGBT modules with individual drivers. This new, pioneering concept makes it practical for the first time to build converter series with discrete modules as well as parallel-connected IGBTs without any significant additional development effort.
Unrivalled compactness with broad applicability and high reliability - 85% less components compared to conventional drivers. This product is available with Conformal Coating.
- SCALE-2+ chip set
- This product is available with Conformal Coating
- New Pin length for 2mm PCB's (2.54mm; 3.1mm; 5.84mm)
- New pins for hand-, wave-and selective soldering processes
- RoHS versions available: 2SC0108T2F1-17, 2SC0108T2G0-17, 2SC0108T2H0-17
- All with EMC improved technology
- 100% downward compatible
- Ultra-compact solution
- Blocking voltages up to 1700V
- Switching frequency up to 50kHz
- Very short delay time of <100ns
- Small jitter of ±2ns
- Gate current ±8A
- +15V (regulated)/-8V gate driving
- Interface for 3.3V...15V logic level
- Direct and half-bridge modes
- Embedded paralleling capability
- 2-level and multilevel topologies
- IGBT short-circuit protection
- Isolated DC/DC converter
- 2 x 1W output power
- Supply under-voltage lockout
- Safe isolation to EN50178
- UL Recognized Component
- Superior EMC
- Reliable, long service life
- Footprint: 45mm x 34.3mm
- No change in electrical and mechanical performance
