LinkSwitch-XT2SR

High-Efficiency Off-line CV Flyback Switcher IC with Integrated 725 V / 900 V Primary MOSFET, Low No-Load, and Synchronous Rectification

應用
過濾器 Filter Products
隱藏篩選器
Filter Products
顯示1 - 8項產品, 共8項
Product Parts Table
產品
產品規格型錄
輸出功率 (最大) - 敞開式, 通用
輸出功率 (最大) - 敞開式, 230V
輸出電壓 (最小)
輸出電壓 (最大)
擊穿電壓
輸入電壓 (最小)
輸入電壓 (最大)
保護功能
控制功能
內部開關
產品類別
IC封裝
拓撲結構
自動重啟和過壓反應
自動重啟閾值
過熱反應
運作溫度 (最小)
運作溫度 (最大)
開關頻率 (最大)
平均開關頻率 (230 VAC)
MSL等級
Output Power (Max) - Open Frame, Univ 6.0 W
Output Power (Max) - Open Frame, 230V 7.0 W
Voltage - Output (Min) 5 V
Voltage - Output (Max) 5 V
Breakdown Voltage 725 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3
Output Power (Max) - Open Frame, Univ 6.0 W
Output Power (Max) - Open Frame, 230V 7.0 W
Voltage - Output (Min) 5 V
Breakdown Voltage 725 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Open Frame, 230V 12.0 W
Voltage - Output (Min) 5 V
Voltage - Output (Max) 5 V
Breakdown Voltage 725 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Open Frame, 230V 12.0 W
Voltage - Output (Min) 5 V
Breakdown Voltage 725 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3
Output Power (Max) - Open Frame, Univ 12.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
Voltage - Output (Min) 5 V
Voltage - Output (Max) 5 V
Breakdown Voltage 725 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3
Output Power (Max) - Open Frame, Univ 12.0 W
Output Power (Max) - Open Frame, 230V 15.0 W
Voltage - Output (Min) 5 V
Breakdown Voltage 725 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 265 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Open Frame, 230V 12.0 W
Voltage - Output (Min) 5 V
Voltage - Output (Max) 5 V
Breakdown Voltage 900 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 484 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3
Output Power (Max) - Open Frame, Univ 10.0 W
Output Power (Max) - Open Frame, 230V 12.0 W
Voltage - Output (Min) 5 V
Breakdown Voltage 900 V
Voltage - Input (Min) 85 V
Voltage - Input (Max) 484 V
Protection Features 開路同步整流FET檢測, 輸出過壓, 過溫
Control Features 同步整流, 頻率抖動, 自動重啟/鎖定故障響應, 開/關控制
Internal Switch Yes
Product Type IC
IC Package SO-16B
Topology 返馳式
Auto-Restart & Overvoltage Response 自動重啟
Auto-Restart Threshold OL
Over-Temperature Response 滯回
Temperature - Operating (Min) -40 °C
Temperature - Operating (Max) 150 °C
Switching Frequency (max) 66 kHz
Switching Frequency (Avg. 230 VAC) 66 kHz
MSL Rating 3

產品詳情

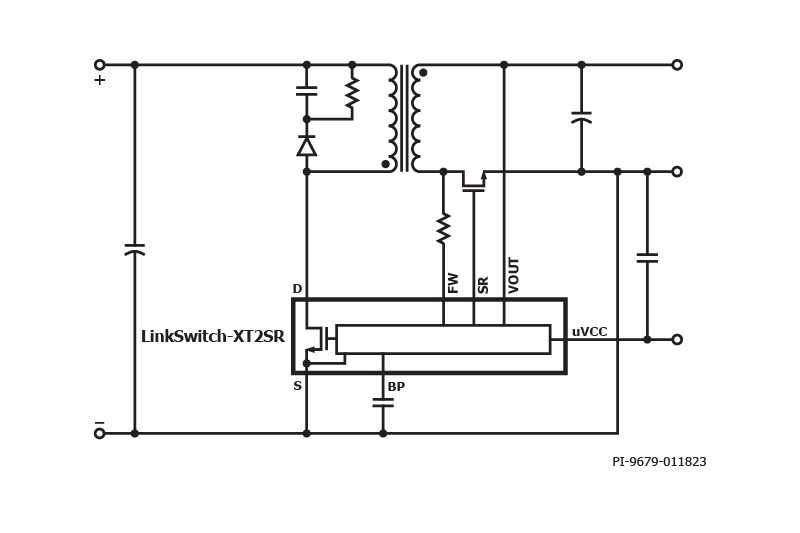

The LinkSwitch-XT2SR family dramatically increases the efficiency of auxiliary power supplies used in appliances, consumer products and industrial applications. Ideal for non-isolated designs with a high current, 5 V output, this advanced flyback controller can achieve >90% full load efficiency. High efficiency is maintained over to load range, with >85% efficiency at 100 mW load. No-load consumption is <5 mW.

The default 5 V main output can be adjusted via optional external feedback resistors. Power for start-up and normal operation is supplied from the DRAIN and VOUT pins, eliminating the need for a bias winding and associated

circuitry. The SO-16 package and a low number of external components make the LinkSwitch-XT2SR ICs ideal for compact designs.

Key Features

Ideal for Non-Isolated Applications

  • Low component count switcher solution with SR driver and integrated 3.3 V LDO (uVCC)
  • High-efficiency across load range
  • Accurate CV independent of transformer design or external components
  • Feature Code H003 - default 5 V output with no external feedback components
  • Feature Code H004 - adjustable output voltage using optional FEEDBACK pin
  • Simple two winding transformer
  • Compact package reduces PCB area

EcoSmart™ – Energy-Efficient

  • Less than 5 mW no-load at 230 VAC
  • • Enables designs that easily meet global energy efficiency regulations
  • • Achieves up to 90% full load efficiency with 5 V output

Advanced Protection / Safety Features

  • Hysteretic thermal shutdown (OTP)
  • Output OV protection with VOUT pin
  • Extended creepage between DRAIN pin and all other pins increases field reliability
  • 725 V MOSFET rating series for excellent surge withstand
  • 900 V switch rating for industrial applications and extra safety margin
  • Extremely low component count enhances reliability
  • Allows use of single-sided PCB and full SMD manufacturability

Green Package

  • Halogen free and RoHS compliant
