2SC0115T
Smallest IGBT gate-driver for 90 kW-500 kW inverters, SCALE-2+ Technology, galvanic solution for 1200 V IGBT drivers, advanced active clamping or SSD
애플리케이션
|
제품
|
데이터 시트
|
IGBT 전압 등급
|
채널 수
|
등각 코팅?
|
드라이브 모드
|
게이트 피크 전류 (최대)
|
게이트 턴 오프 전압
|
격리 기술
|
인터페이스 유형
|
보호 기능
|
격리 유형
|
논리 입력 전압
|
메인 / 주변
|
최대 스위칭 주파수
|
옵션 정보
|
게이트 턴온 전압
|
지원되는 모듈 유형
|
지원되는 토폴로지
|
출력 전력 / 채널-최대
|
병렬 지원?
|
공급 전압 (일반)
|
시간 - 출력 하락
|
시간 - 출력 상승
|
기술
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1200 V
|
Number of Channels
1
|
Conformal Coated?
No
|
Driving Mode
직접 독립형
|
Gate Peak Current (Max)
+15 A
|
Gate Turn-off Voltage
--8.5 V
|
Isolation Technology
절연
|
Interface Type
전기
|
Protection Features
고급 능동 클램핑, 단락, 저전압 (2차측), 저전압 (1차측)
|
Isolation Type
강화형
|
Logic Input Voltage
5
|
Main/Peripheral
해당 없음
|
Max Switching Frequency
50.0 kHz
|
Options Info
Conformal Coated Version 2SC0115T2A0C-12
|
Gate Turn-on Voltage
+15.0 V
|
Supported Module Type
IGBT, N채널 MOSFET
|
Supported Topologies
2단계 전압 소스, 3단계 NP 클램프 - 유형 1, 3단계 NP 클램프 - 유형 2, 다단계 NP 클램프
|
Power - Output/Channel (Max)
1.4 W
|
|
Supply Voltage (Typ)
15 V
|
Time - Output Fall
12 ns
|
Time - Output Rise
6 ns
|
Technology
SCALE-2+
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1200 V
|
Number of Channels
1
|
Conformal Coated?
Yes
|
Driving Mode
직접 독립형
|
Gate Peak Current (Max)
+15 A
|
Gate Turn-off Voltage
--8.5 V
|
Isolation Technology
절연
|
Interface Type
전기
|
Protection Features
고급 능동 클램핑, 단락, 저전압 (2차측), 저전압 (1차측)
|
Isolation Type
강화형
|
Logic Input Voltage
5
|
Main/Peripheral
해당 없음
|
Max Switching Frequency
50.0 kHz
|
|
Gate Turn-on Voltage
+15.0 V
|
Supported Module Type
IGBT, N채널 MOSFET
|
Supported Topologies
2단계 전압 소스, 3단계 NP 클램프 - 유형 1, 3단계 NP 클램프 - 유형 2, 다단계 NP 클램프
|
Power - Output/Channel (Max)
1.4 W
|
Paralleling Support?
No
|
Supply Voltage (Typ)
15 V
|
Time - Output Fall
12 ns
|
Time - Output Rise
6 ns
|
Technology
SCALE-2+
|
제품 상세 정보

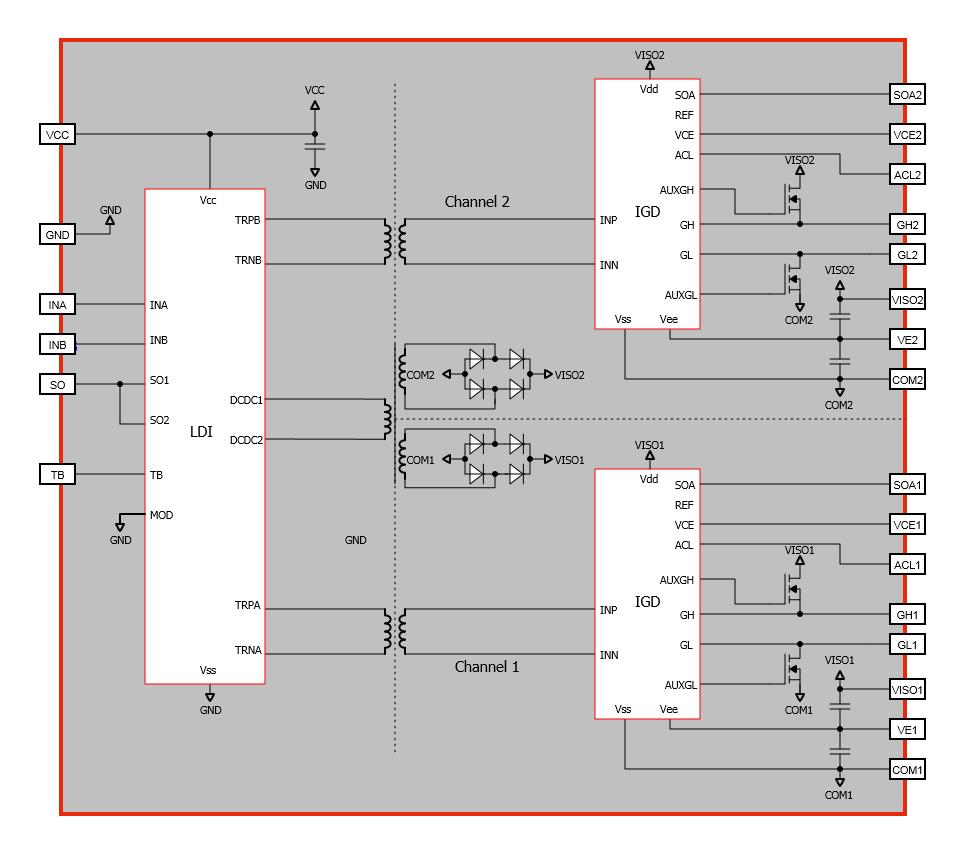

Leveraging SCALE-2+ integrated circuit and isolated transformer technology for DC/DC power and switching signal transmission, the new 2SC0115T IGBT driver core improves system reliability and performance by eliminating the need for an opto-coupler. The IGBT driver core’s reinforced electrical isolation targets systems with a working voltage of 900 V, which is typical for 1200 V IGBT modules and complies with the PD2 and OV II requirements of IEC 60664-1 and IEC 61800-5-1. The 2SC0115T IGBT gate driver core supports modules up to 2400 A and switching frequencies of up to 50 kHz.
- SCALE-2+ chip set
- Available with Conformal Coating
- Programmable SSD and AAC function
- New Pin length for 2mm PCB's (2.54mm; 3.1mm; 5.84mm)
- New pins for hand-, wave-and selective soldering processes
- All lead free
- All with EMC improved technology
- 100% downward compatible
- Dual-channel driver core for up to 1200 V
- ±15A gate current, +15 V/-6 V
- 1.2 W max. per channel
- On-board regulated power supply
- Soft Shut Down (SSD) or Advanced Active Clamping (AAC)
- High reliability (reduced component count)First-class isolation technology
- Partial-discharge-tested isolation technology
- Delay time <100 ns, up to 50 kHz
- Isolation coordination with working voltage 900V according to IEC 61800-5-1 and IEC 60664-1
- -40°C to +105°C (105°C with derating)
- RoHS compliant
- No change in electrical and mechanical performance
- UL Recognized Component
