2SC0106T
Dual-channel SCALE-2+ driver core, highest integration level for inverter designs from 37 to 110 kVA, integrated short-circuit soft shutdown function
애플리케이션
|
제품
|
데이터 시트
|
IGBT 전압 등급
|
채널 수
|
등각 코팅?
|
지원되는 모듈 유형
|
보호 기능
|
기술
|
지원되는 토폴로지
|
인터페이스 유형
|
공급 전압 (일반)
|
게이트 턴온 전압
|
게이트 턴 오프 전압
|
출력 전력 / 채널-최대
|
게이트 피크 전류 (최대)
|
격리 유형
|
격리 기술
|
최대 스위칭 주파수
|
시간 - 출력 하락
|
시간 - 출력 상승
|
UL 준수
|
드라이브 모드
|
메인 / 주변
|
옵션 정보
|
병렬 지원?
|
ROMS
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1200 V
|
Number of Channels
2
|
Conformal Coated?
No
|
Supported Module Type
IGBT, N채널 MOSFET
|
Protection Features
기본 능동 클램핑, 소프트 셧다운, 단락, 저전압 (2차측), 저전압 (1차측)
|
Technology
SCALE-2+
|
Supported Topologies
2단계 전압 소스
|
Interface Type
전기
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--10.2 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+6 A
|
Isolation Type
강화형
|
Isolation Technology
절연
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
13 ns
|
Time - Output Rise
20 ns
|
UL Compliant
인증
|
Driving Mode
직접 독립형
|
Main/Peripheral
해당 없음
|
Options Info
Conformal Coated Version 2SC0106T2A1C-12
|
|
ROMS
예
|
|
|
Data Sheet
View Data Sheet
|
IGBT Voltage Class
1200 V
|
Number of Channels
2
|
Conformal Coated?
Yes
|
Supported Module Type
IGBT, N채널 MOSFET
|
Protection Features
기본 능동 클램핑, 소프트 셧다운, 단락, 저전압 (2차측), 저전압 (1차측)
|
Technology
SCALE-2+
|
Supported Topologies
2단계 전압 소스
|
Interface Type
전기
|
Supply Voltage (Typ)
15 V
|
Gate Turn-on Voltage
+15.0 V
|
Gate Turn-off Voltage
--10.2 V
|
Power - Output/Channel (Max)
1.2 W
|
Gate Peak Current (Max)
+6 A
|
Isolation Type
강화형
|
Isolation Technology
절연
|
Max Switching Frequency
50.0 kHz
|
Time - Output Fall
13 ns
|
Time - Output Rise
20 ns
|
|
Driving Mode
직접 독립형
|
Main/Peripheral
해당 없음
|
|
Paralleling Support?
No
|
|

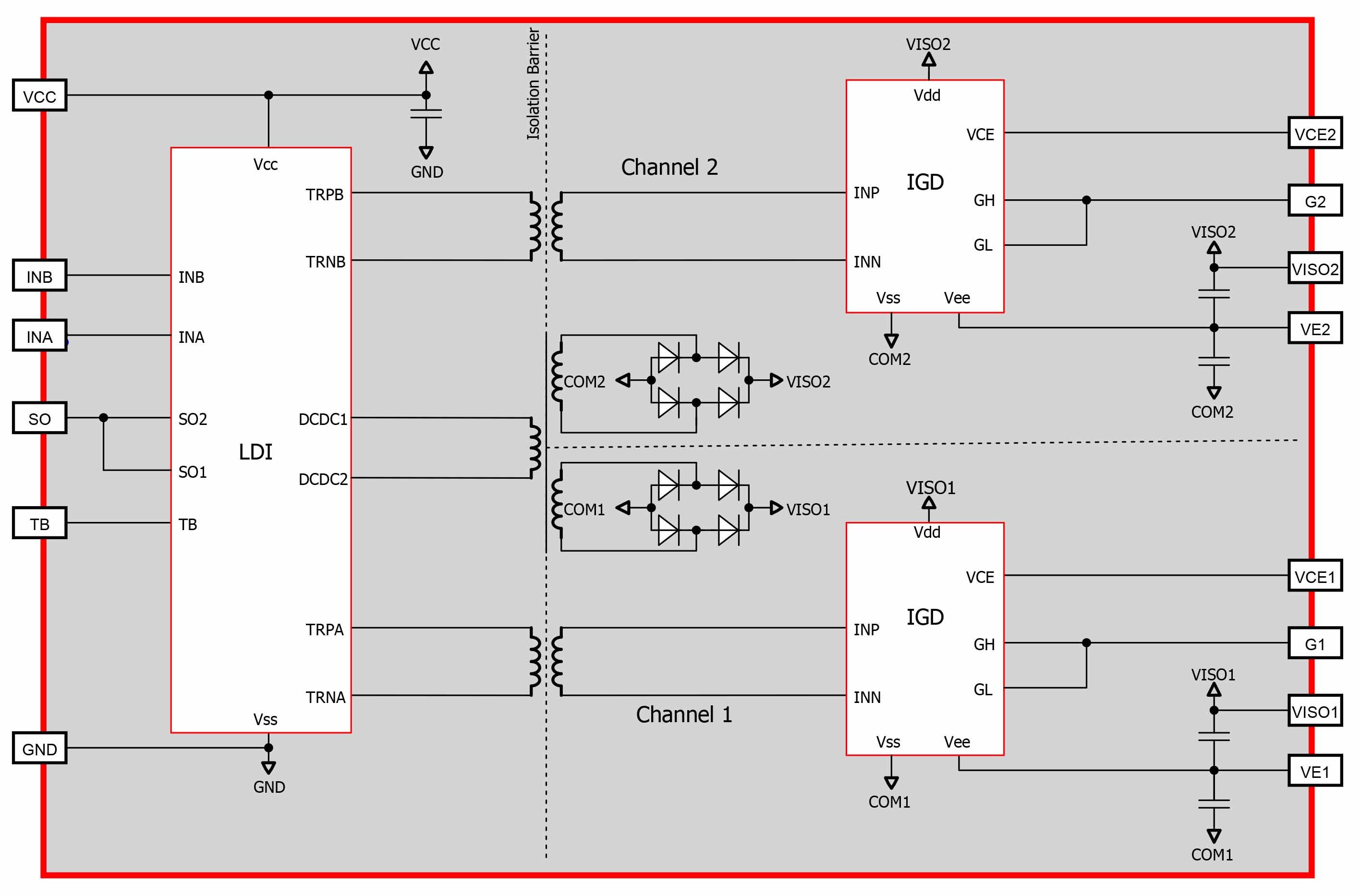

제품 상세 정보
The dual-channel gate driver core 2SC0106T, equipped with the new SCALE™-2+ chipset, is a high-performance two-channel IGBT/MOSFET gate driver core for 1200 V IGBTs in the 37 kW to 110 kW power range. The 2SC0106T drives 600 V to 1200 V IGBTs with collector currents up to 450 A and switches at frequencies up to 50 kHz.
The new SCALE™-2+ technology enables soft shutdown (SSD) to be implemented in the event of a short circuit without requiring additional components. This is particularly beneficial in applications with low stray-inductance where full Advanced Active Clamping – a method invented by CONCEPT for shutting down IGBTs or MOSFETs in a controlled manner under any circumstances - may not be necessary.
UL-recognized under E321757 for UL508C and E346491 for UL60950-1 is planned.
Cost effective high-performance alternative to opto-coupler based solution with safe isolation and no parameter degradation. This product is available with Conformal Coating.
- SCALE™-2+ chip set
- This product is available with Conformal Coating
- New Pin length for 2mm PCB's (2.54mm; 3.1mm; 5.84mm)
- New pins for hand-, wave-and selective soldering processes
- All lead free
- All with EMC improved technology
- 100% downward compatible
- Dual-channel driver core for up to 1200 V
- ±6A gate current, +15 V/-8 V
- 1 W @ 85°C per channel
- On-board power supply
- High reliability (reduced component count)First-class isolation technology
- Partial-discharge-tested isolation technology
- Delay time <100 ns, up to 50 kHz
- Isolation coordination according to IEC 61800-5-1 and IEC 60664-1
- UL Recognized Component
- -20°C to +85°C (105°C with derating)
- RoHS compliant
- New pins for hand-, wave-and selective soldering processes
- No change in electrical and mechanical performance
- Available with Conformal Coating
