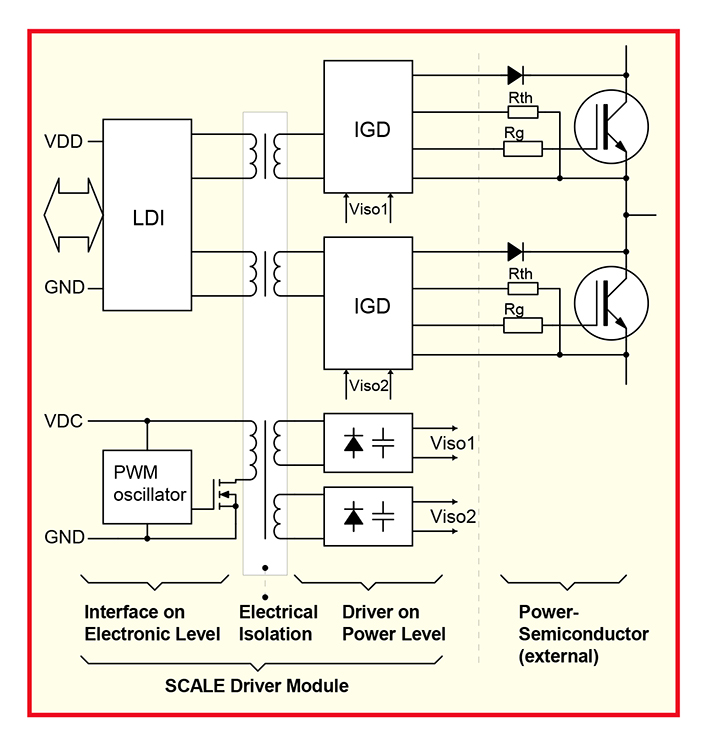

The 2SD106AI series comprises 2-channel SCALE-1 driver cores for IGBTs up to 1700 V. The gate current capability of ±6 A is optimized for IGBTs from 50 A to typically 200 A. The two drive channels feature electrical isolation between the control electronics and the power section. Gate voltage is ±15 V.
Each channel is equipped with a programmable Vce-monitoring function for protection against short circuit and overcurrent.
The driver is equipped with the award-winning CONCEPT SCALE-1 driver chipset and can be operated in two modes: either with two independent driver channels or as a half-bridge driver with internal dead-time generation.
The integrated, electrically-isolated DC/DC converter supplies a drive power of 1 W per channel.
Highest Reliability
SCALE-1 drivers have been established as an industrial standard since 1999, and the 2SD106AI has been proven in numerous industrial and rail applications.
Key Features
- Suitable for IGBTs up to 1700V
- Interface with 5V...15V logic level
- Schmitt-trigger inputs
- Short-circuit and overcurrent protection
- Supply undervoltage lockout
- Isolated DC/DC converter
- Signal transformer isolation
- Isolated status feedback
- Reliable, long service life
