2SP0215F2Q0C-FF900R12ME7W_B11

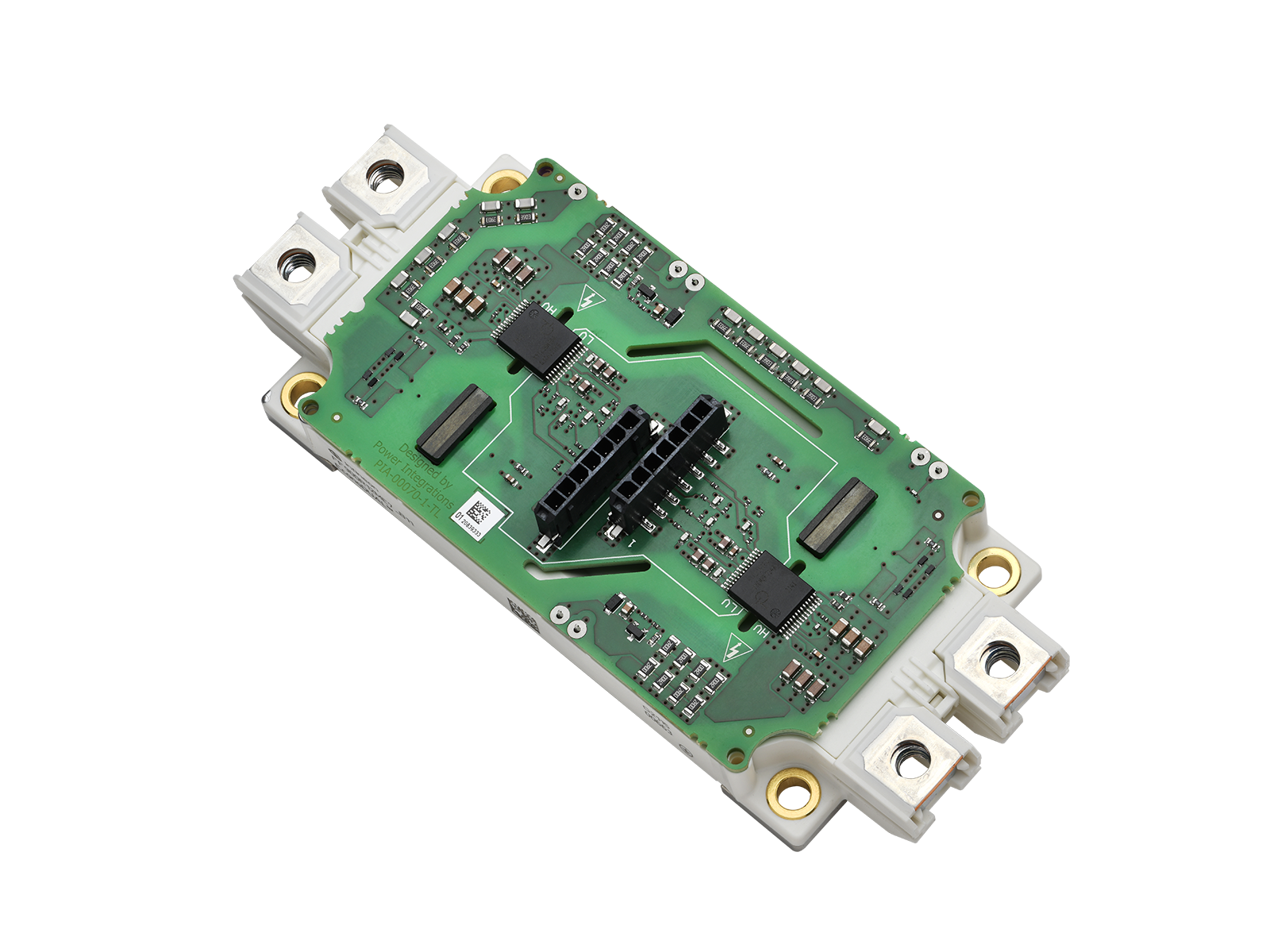

The 2SP0215F2Q0C is a dual channel gate driver for Infineon™ EconoDUAL™ 17 mm modules driving IGBT switches. The Plug-and-Play gate driver board is designed for applications requiring automotive qualification like electronic buses, electronic trucks, battery electrical vehicles, hybrid electrical vehicles or fuel cell inverters operating up to 1000 V battery voltage.

The gate driver provides automotive related protection functionalities and diagnostics. A galvanic isolated IGBT module integrated NTC read-out provides IGBT module temperature information.

Product Highlights

• Ready-to-use dual channel gate driver solution for EconoDUAL™
• 7 mm IGBT power modules up to 1200 V
• Primary-side electrical interface with reinforced isolation
• +20 A / -15 A peak output gate current
• Up to 20 kHz switching frequency
• Gate power of 1.5 W per channel at maximum ambient temperature
• Digital Communication Interface
• -40 °C to +85 °C operating ambient temperature
• Operation up to 5500 m altitude
• High common-mode transient immunity

Protection, Safety and Diagnostic Features

• 5 V input logic
• DC-link Active Discharge (AD) function (Optional)
• Motor Active Short Circuit (ASC) function (Optional)
• Galvanically isolated analog temperature measurement for module integrated NTC elements
• Rail-to-rail stabilized secondary-side output voltage
• Integrated FluxLink™ technology providing reinforced isolation barrier between primary-side and secondary-side
• Advanced Resistive Overvoltage Control (AROC) controlled soft turn-off in response to any critical failure
• Internal communication monitoring
• Undervoltage monitoring (UVLO) for primary-side and secondary-side
• Secondary-side overvoltage monitoring (OVLO)
• Gate monitoring
• Two-stage primary-side and secondary-side die temperature monitoring
• Desaturation monitoring
• DC/DC controller over current monitoring
• Separate isolated digital failure and status outputs
• Active Miller clamp
• Conformal coating

Full Safety and Regulatory Compliance

• ASIL-B certification (pending)
• Clearance and creepage distances between primary and secondary sides meet requirements for reinforced isolation (according to IEC 60664-1, IEC 60664-3)
• SEooC product certification (pending)
• 100% production partial discharge test
• 100% production HIPOT testing at 4000 kVRMS for 1 s

Applications

• E-Bus and E-Truck traction inverter
• Diesel-electric traction inverter
• Fuel cell inverter
• Agricultural and construction vehicles and equipment
• Other automotive and industrial applications
