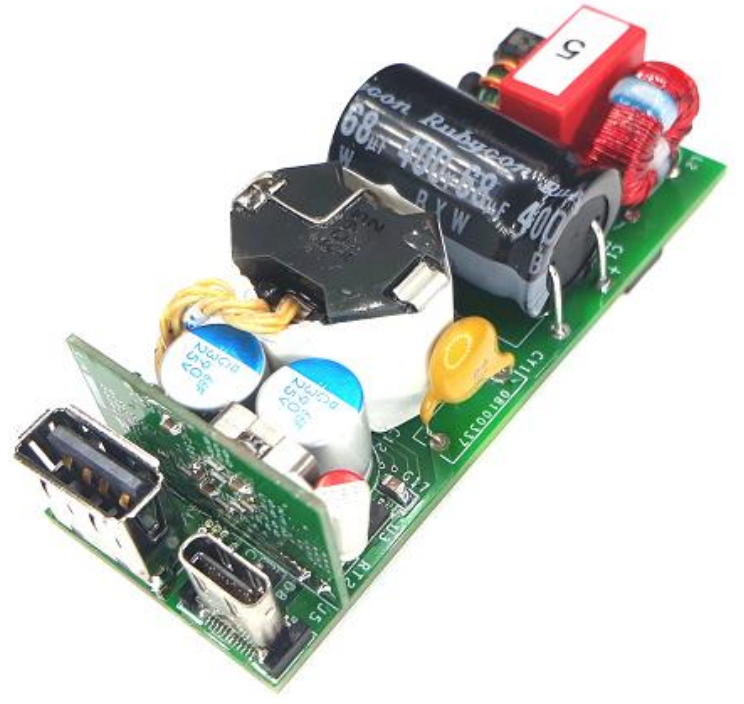

RDK-848 - 42 W Dual Port Isolated Flyback Power Supply with 30 W USB PD 3.0 and 12 W USB-A Ports Using InnoSwitch3-Pro PowiGaN
42 W Dual Port Isolated Flyback Power Supply with 30 W USB PD 3.0 and 12 W USB-A Port Using InnoSwitch3-Pro with PowiGaN Technology (INN3379C-H302)
애플리케이션
명세서
Associated Product Numbers
INN3379C-H302
Design Type
Reference Design Reports (RDR)
토폴로지
Flyback
RoHS?
Yes
Vout (variable)
5.00 V
Vout (variable)
9.00 V
Vout (variable)
12.00 V
Vout (variable)
15.00 V
Vout (variable)
20.00 V
Vin (min)
90
Vin (max)
265
Variable Power Output
예
P (NoLoad)
75.00 mW
CV/CC
CV/CC
Efficiency
90.00%
EU ErP Compliant?
Yes
절연?
Yes
Number of outputs
2
출력 전력
42.00 W
OVP?
Yes
PFC?
No
Associated Parts
INN3379C-H302
Gerber File
rdr-848_gerber.zip
