명세서
Design Type

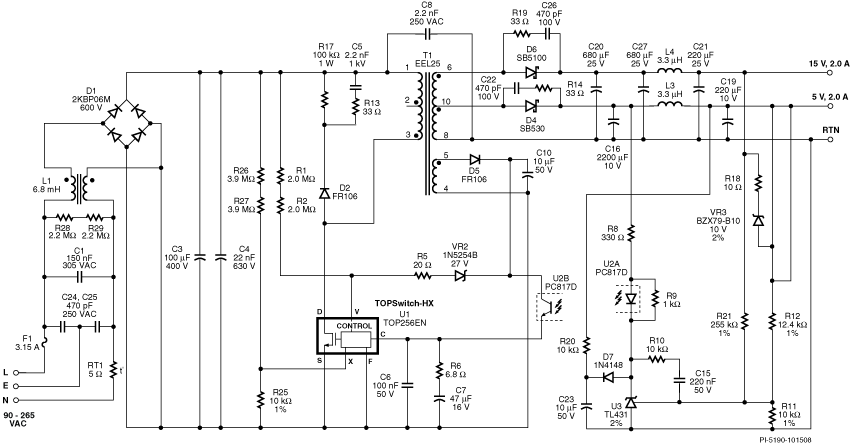

Design Example Reports (DER)
토폴로지
Flyback
Vout 1
5.00 V
Vout 2
15.00 V
Vin (min)
90
Vin (max)
265
절연?
Yes
Number of outputs
2
출력 전력
40.00 W
Associated Parts
TOP256EN
Gerber File
der191gerber.zip
